- Part Number TDA7718BTR
- Manufacturer STMicroelectronics
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - TSSOP28
- Released Date Aug 30, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA7718BTR Details
-
Manufacturer Part Number:
TDA7718BTR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT, MO-153-AC, TSSOP-28
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Consumer IC Type:
CONSUMER CIRCUIT
TDA7718BTR Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
-
The input capacitor values depend on the input voltage, output voltage, and output current requirements. A general guideline is to use a minimum of 10uF ceramic capacitor with a voltage rating of at least 2x the input voltage. However, it's recommended to consult the application note AN2863 for more detailed guidance on capacitor selection.
-
The TDA7718BTR has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
-
Yes, the TDA7718BTR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard for automotive applications and is suitable for use in harsh environments. However, it's essential to consult the datasheet and application notes for specific guidance on using the device in these applications.
-
STMicroelectronics provides a troubleshooting guide in the application note AN2863, which covers common issues and their solutions. Additionally, it's recommended to consult the datasheet and application notes for specific guidance on troubleshooting and debugging.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TDA7718BTR Overview

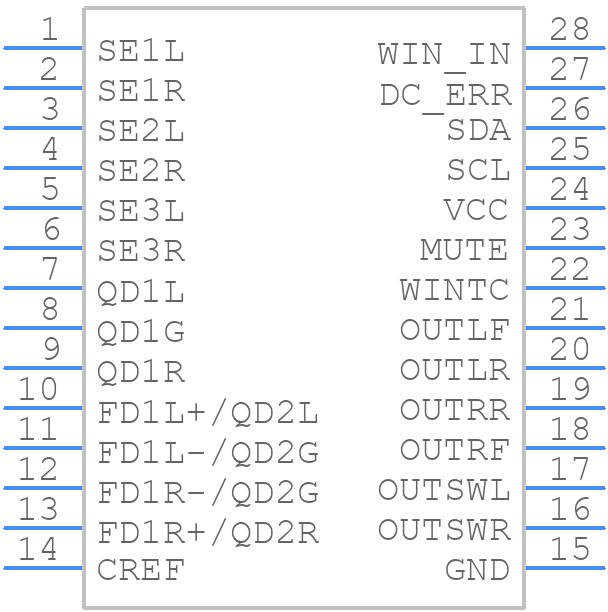

Use the download button to access the TDA7718BTR schematic symbol, PCB footprint, and 3D model.
