TDA7719TR - STMicroelectronics

Description: Automotive 3 band car audio processor

Download TDA7719TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

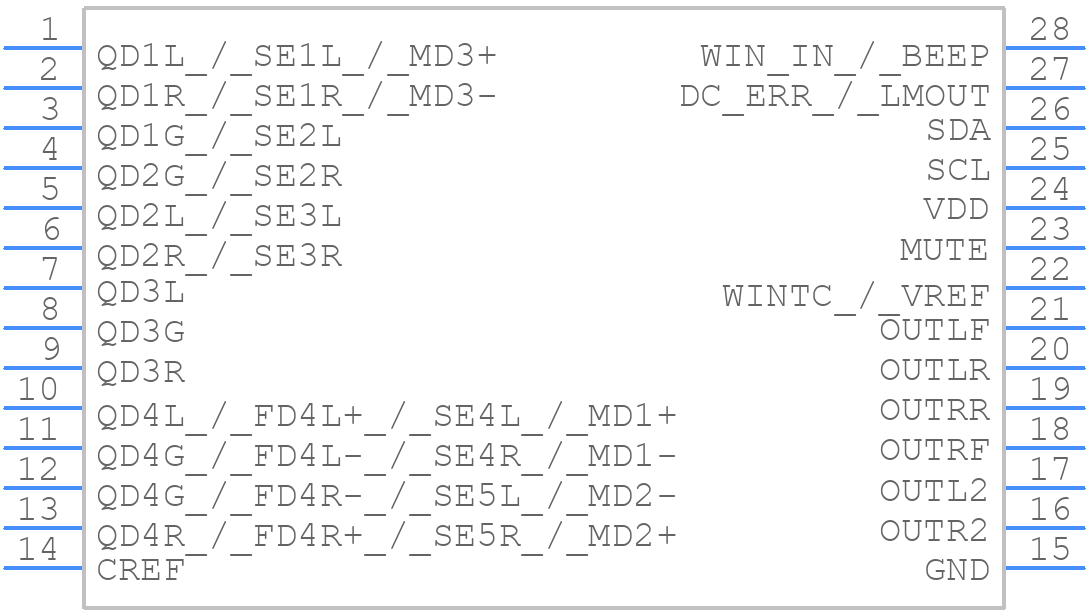

TDA7719TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7719TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP28
click to zoom
3D Models
TDA7719TR - STMicroelectronics - 3D model - Small Outline Packages - TSSOP28
click to zoom

TDA7719TR Details

  • Manufacturer Part Number:

    TDA7719TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AC, TSSOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Channel Separation:

    90 dB

  • Consumer IC Type:

    TONE CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.7 mm

  • Number of Bands:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    7.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

TDA7719TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA7719TR involves keeping the analog and digital grounds separate, using a star-point grounding scheme, and placing the device close to the power supply. Additionally, using a 4-layer PCB with a dedicated ground plane can help reduce EMI.
  • To optimize the TDA7719TR's performance, you should consider the specific requirements of your audio application, such as the input impedance, output impedance, and gain requirements. You may need to adjust the external component values, such as the feedback resistors and capacitors, to achieve the desired frequency response and gain.
  • The TDA7719TR has a maximum junction temperature of 150°C. To ensure reliable operation, you should ensure good heat dissipation, such as using a heat sink or a thermal pad, and avoid overheating the device. You should also follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
  • To troubleshoot common issues with the TDA7719TR, you should first check the power supply voltage and ensure it is within the recommended range. Then, check the input and output signals for distortion or oscillation, and verify that the external components are correctly valued and connected. You may also need to check for PCB layout issues, such as poor grounding or inadequate decoupling.
  • Yes, the TDA7719TR is a sensitive device and requires proper ESD protection during handling and assembly. You should follow standard ESD protection procedures, such as using an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7719TR Overview

Use the download button to access the TDA7719TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA77, or try a keyword search, such as Audio Control ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
