A good PCB layout for the TDA7801 involves keeping the analog and digital grounds separate, using a star-point grounding system, and placing the device close to the audio jacks to minimize noise. Additionally, using a 4-layer PCB with a dedicated ground plane can help reduce EMI.
To optimize the TDA7801's performance for low-power consumption, use a low-dropout voltage regulator, minimize the voltage supply, and use the device's built-in power-down mode when not in use. Additionally, optimizing the PCB layout and using low-ESR capacitors can also help reduce power consumption.
The recommended values for the external components in the TDA7801's analog circuitry are: R1=2kΩ, R2=1kΩ, R3=2kΩ, C1=10nF, C2=100nF, and C3=10uF. However, these values may need to be adjusted based on the specific application and desired performance.
To troubleshoot common issues with the TDA7801, check the PCB layout for noise susceptibility, ensure that the power supply is clean and stable, and verify that the external components are of high quality and correctly valued. Additionally, checking the device's operating conditions, such as temperature and voltage supply, can also help identify the root cause of the issue.
Yes, the TDA7801 can be used in automotive applications. However, it requires additional components and design considerations to meet the specific requirements of the automotive industry, such as AEC-Q100 qualification, and compliance with ISO 26262 and IEC 61508 standards.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDA7801 Overview

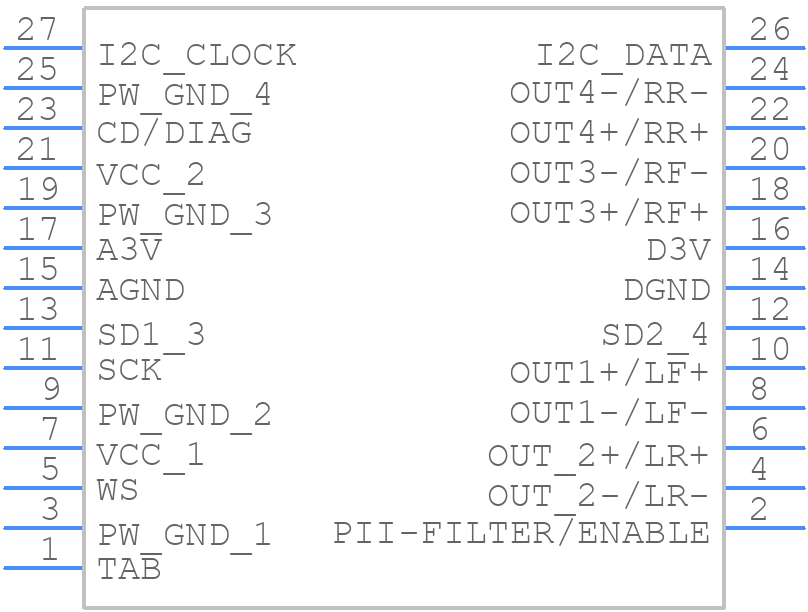

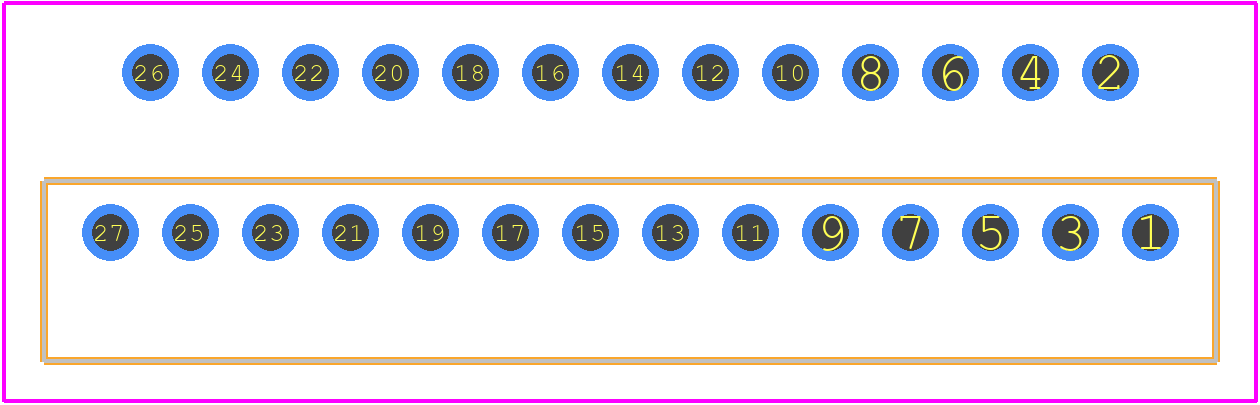

Use the download button to access the TDA7801 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA78,
or try a keyword search, such as Audio/Video Amplifiers
About STMicroelectronics
STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components.
STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
