STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The TDA7801PD is a highly configurable device, and the configuration depends on the specific audio application. STMicroelectronics provides a software tool called TDA7801 Configurator, which allows designers to configure the device for their specific use case, including setting gain, tone control, and filter characteristics.
The maximum power dissipation of the TDA7801PD depends on the operating conditions, including the supply voltage, output power, and ambient temperature. According to the datasheet, the maximum power dissipation is 2.5 W, but this can be reduced by using a heat sink or optimizing the PCB layout for thermal management.
Yes, the TDA7801PD is AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. It is suitable for use in automotive infotainment systems, navigation systems, and other audio applications.
STMicroelectronics provides a troubleshooting guide in the application note AN2863, which covers common issues and their solutions, including noise, distortion, and oscillation. Additionally, designers can use oscilloscopes and signal analyzers to debug the audio signal and identify the root cause of the issue.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDA7801PD Overview

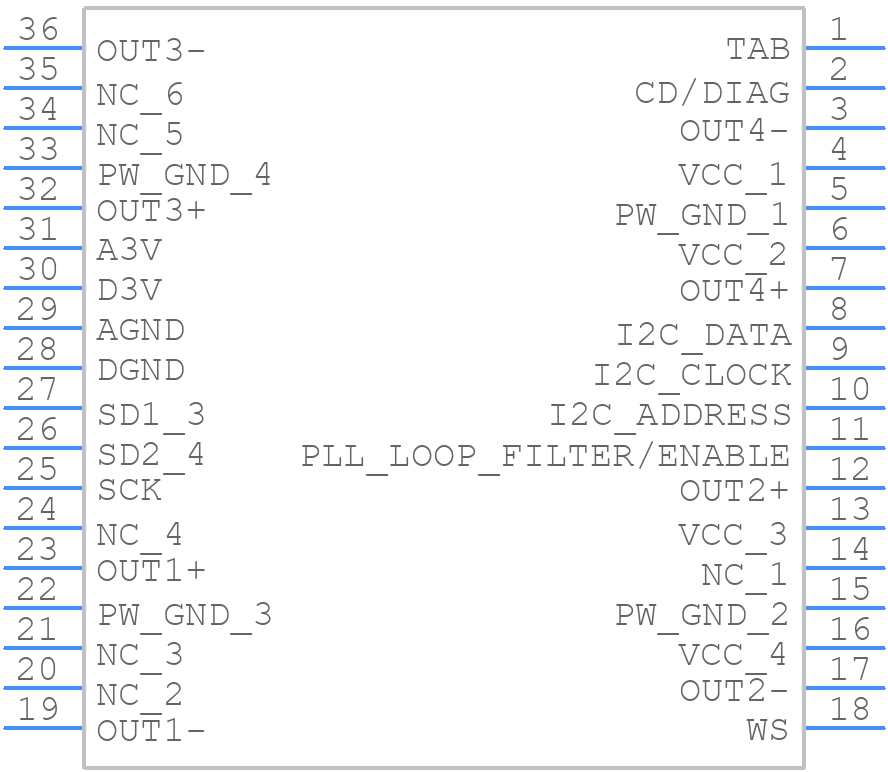

Use the download button to access the TDA7801PD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA78,
or try a keyword search, such as Audio/Video Amplifiers
