TDA7802PD footprint, schematic symbol and 3D model by STMicroelectronics

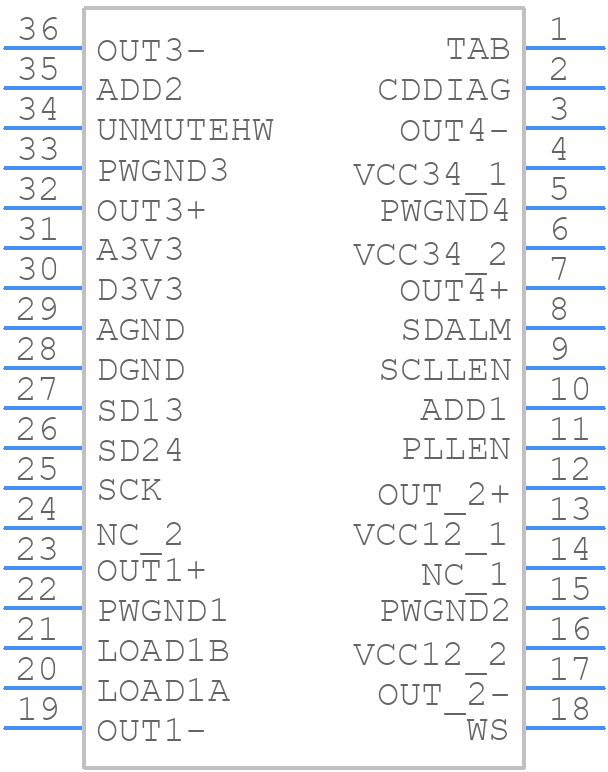

Symbol

click to zoom

PCB Footprints

TDA7802PD - STMicroelectronics PCB footprint - Other - Other - TDA7802PD-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TDA7802PD
Part Number TDA7802PD
Manufacturer STMicroelectronics
Pin Count 36
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - TDA7802PD-2
Released Date Sep 11, 2022
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

TDA7802PD Details

Manufacturer Part Number:
TDA7802PD
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SOP-36
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
22 Weeks
Manufacturer:
STMicroelectronics
YTEOL:
0
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
R-PDSO-G36
Length:
15.9 mm
Number of Functions:
1
Number of Terminals:
36
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SSOP36,.56
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Qualification Status:
Not Qualified
Seated Height-Max:
3.41 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
6 V
Surface Mount:
YES
Technology:
BCDMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
11 mm

TDA7802PD Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
The selection of external components such as resistors, capacitors, and inductors depends on the specific application and requirements. STMicroelectronics provides a component selection guide in the application note AN2863, which includes formulas and guidelines for selecting the correct components.
The TDA7802PD is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and thermal management. It's recommended to consult the datasheet and application notes for more information.
STMicroelectronics provides a troubleshooting guide in the application note AN2863, which includes common issues, symptoms, and solutions. Additionally, the datasheet and other application notes provide information on fault detection and protection features.
The TDA7802PD is designed to meet EMI and EMC standards, but proper PCB layout, component selection, and shielding are still required to ensure compliance. STMicroelectronics provides guidelines for EMI and EMC considerations in the application note AN2863 and other documentation.
