TDA7802PDTR footprint, schematic symbol and 3D model by STMicroelectronics

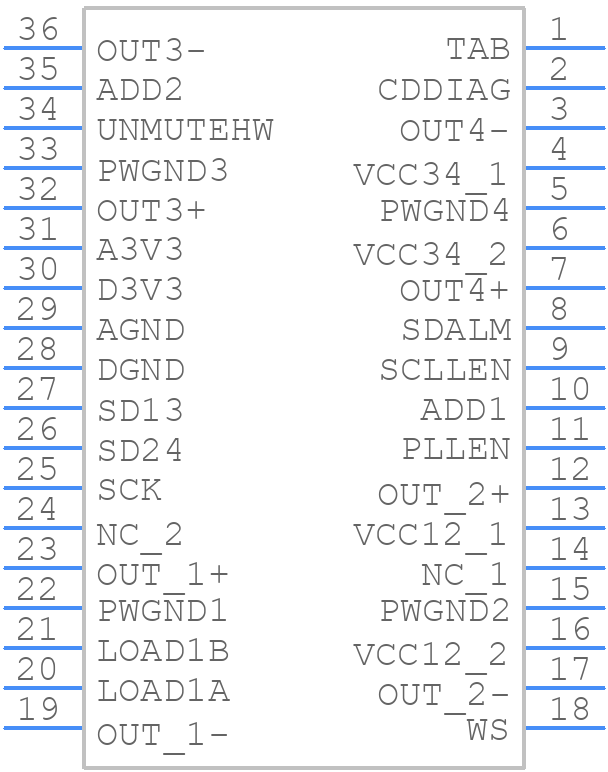

Symbol

click to zoom

PCB Footprints

TDA7802PDTR - STMicroelectronics PCB footprint - Other - Other - TDA7802PDTR-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TDA7802PDTR
Part Number TDA7802PDTR
Manufacturer STMicroelectronics
Pin Count 36
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - TDA7802PDTR-3
Released Date Sep 11, 2022
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

TDA7802PDTR Details

Manufacturer Part Number:
TDA7802PDTR
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Package Description:
SOP-36
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
15 Weeks
Manufacturer:
STMicroelectronics
YTEOL:
1
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
R-PDSO-G36
Length:
15.9 mm
Number of Functions:
1
Number of Terminals:
36
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SSOP36,.56
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Qualification Status:
Not Qualified
Seated Height-Max:
3.41 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
6 V
Surface Mount:
YES
Technology:
BCDMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
11 mm

TDA7802PDTR Frequently Asked Questions (FAQs)

A good PCB layout for the TDA7802PDTR involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the audio jacks to minimize noise and EMI.
To ensure EMC, use a metal shield around the device, keep the device away from sources of electromagnetic interference, and use a common-mode choke or ferrite bead on the audio lines.
The maximum power dissipation of the TDA7802PDTR is 1.4W, so ensure that the device is properly heat-sinked and that the PCB is designed to dissipate heat efficiently.
Yes, the TDA7802PDTR is suitable for battery-powered devices due to its low power consumption (typically 12mA) and low voltage operation (down to 2.7V).
To troubleshoot issues with the TDA7802PDTR, check the power supply voltage, ensure proper grounding, and verify that the device is properly configured and connected. Use an oscilloscope to check the audio signals and look for signs of distortion or noise.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TDA7802PDTR Overview

Use the download button to access the TDA7802PDTR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TDA78, or try a keyword search, such as Other Consumer ICs
