TDA7803A-ZST - STMicroelectronics

Description: AUDIO POWER AMP, AB, -40 TO 105DEG C; Output Power:47W; Amplifier Class:AB; No. of Channels:4 Channel; Supply Voltage Range:6V to 16V; Amplifier Case Style:PowerSO; No. of Pins:36Pins; Load Impedance:2ohm; Operating Temperature RoHS Compliant: Yes

Download TDA7803A-ZST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

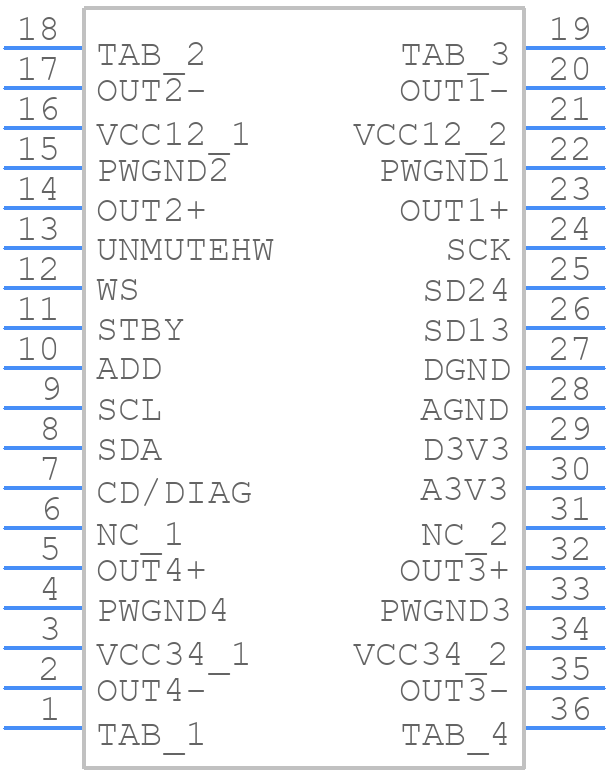

Symbol
TDA7803A-ZST - STMicroelectronics - PCB symbol
click to zoom

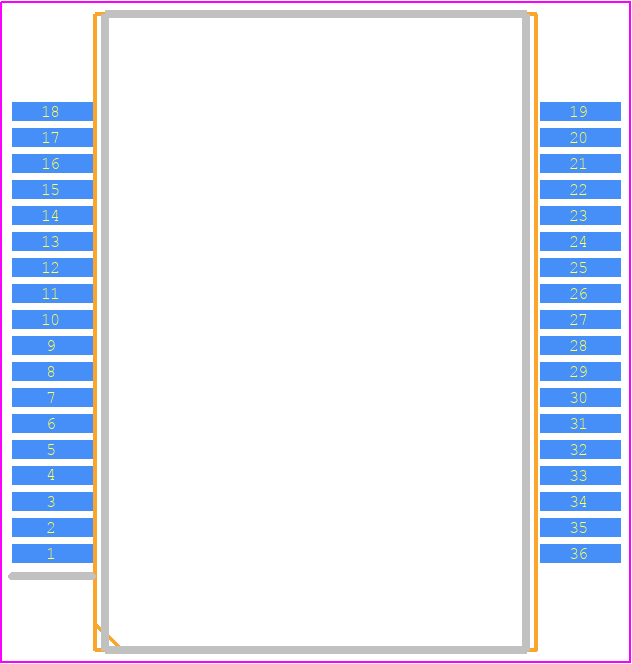

PCB Footprints
TDA7803A-ZST - STMicroelectronics PCB footprint - Other - Other - POWERSO36 exposed pad up-1
click to zoom
3D Models
TDA7803A-ZST - STMicroelectronics - 3D model - Other - POWERSO36 exposed pad up-1
click to zoom

TDA7803A-ZST Details

  • Manufacturer Part Number:

    TDA7803A-ZST

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    72 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    3.41 mm

  • Supply Current-Max:

    210 mA

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    YES

  • Technology:

    BCD

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    11 mm

TDA7803A-ZST Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA7803A-ZST should ensure that the analog and digital grounds are separated, and the analog supply voltage (AVCC) is decoupled from the digital supply voltage (DVCC). Additionally, the input and output tracks should be kept short and away from noise sources.
  • To optimize the TDA7803A-ZST for low power consumption, ensure that the device is operated at the lowest possible supply voltage, and that the clock frequency is set to the minimum required for the application. Additionally, consider using the device's power-down mode when not in use.
  • The maximum allowed capacitance for the input and output coupling capacitors is not explicitly stated in the datasheet, but a general rule of thumb is to keep the capacitance below 10uF to avoid affecting the device's frequency response.
  • To troubleshoot issues with the TDA7803A-ZST, start by verifying that the power supply voltages are correct and stable, and that the input and output signals are within the specified ranges. Use an oscilloscope to check for signal integrity and noise, and consult the datasheet and application notes for guidance on specific troubleshooting techniques.
  • Yes, the TDA7803A-ZST is AEC-Q100 qualified, making it suitable for use in automotive applications. However, ensure that the device is operated within the specified temperature range and that the PCB design meets the required safety and reliability standards for automotive applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7803A-ZST Overview

Use the download button to access the TDA7803A-ZST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA78, or try a keyword search, such as Audio/Video Amplifiers
