TDA7808-48X - STMicroelectronics

Description: High efficiency digital input automotive quad power amplifier, ’start stop’ compatible

Download TDA7808-48X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

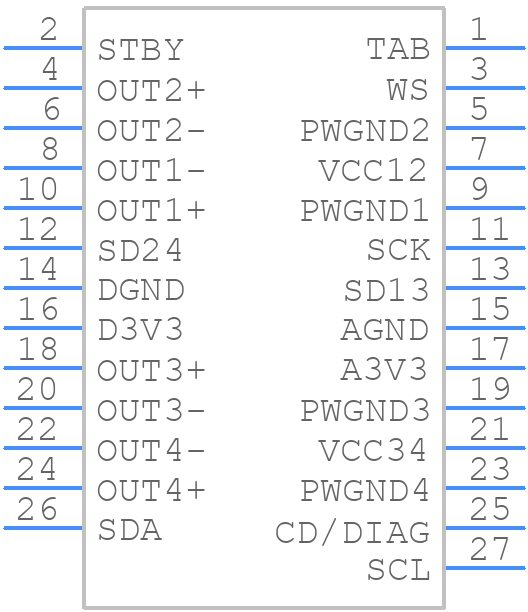

TDA7808-48X - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

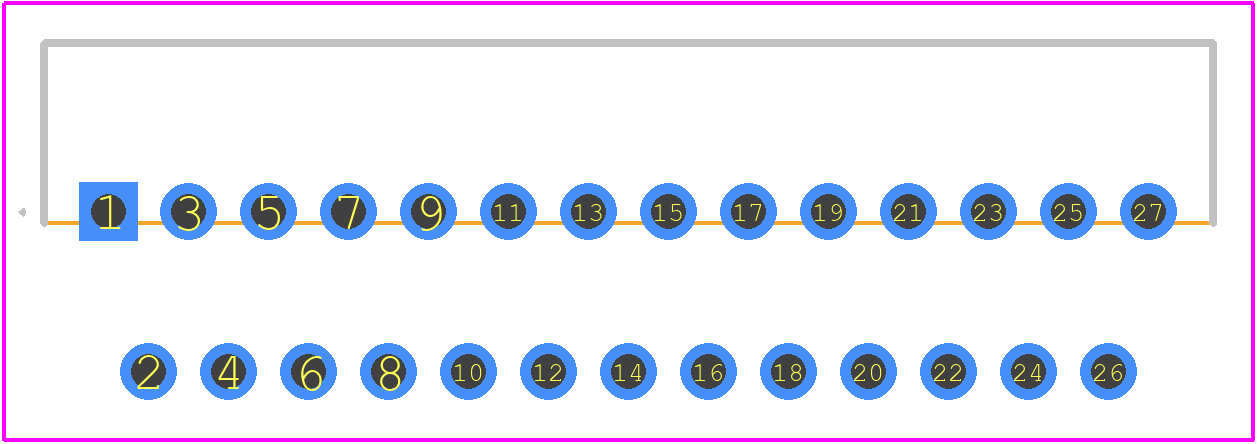

TDA7808-48X - STMicroelectronics PCB footprint - Other - Other - TDA7808-48X-1
click to zoom
3D Models
TDA7808-48X - STMicroelectronics - 3D model - Other - TDA7808-48X-1
click to zoom

TDA7808-48X Details

  • Manufacturer Part Number:

    TDA7808-48X

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

TDA7808-48X Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TDA7808-48X is 40V, although the recommended operating voltage range is 12V to 24V.
  • To ensure proper configuration, carefully review the datasheet and application notes, and consider factors such as input voltage, output voltage, and load current. Additionally, consult with STMicroelectronics' technical support or a qualified engineer if needed.
  • The maximum output current that the TDA7808-48X can deliver is 1.5A, although this may vary depending on the specific application and operating conditions.
  • The TDA7808-48X has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features to protect the device and the load from abnormal voltage conditions. The OVP threshold is typically set at 28V, and the UVLO threshold is typically set at 6.5V.
  • The typical efficiency of the TDA7808-48X is around 85% to 90%, depending on the input voltage, output voltage, and load current. However, this may vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7808-48X Overview

Use the download button to access the TDA7808-48X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA78, or try a keyword search, such as Other Consumer ICs
