TDA7850A - STMicroelectronics

Description: Amplifier IC 4-Channel (Quad) Class AB 27-Flexiwatt (Vertical) 85W

Download TDA7850A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

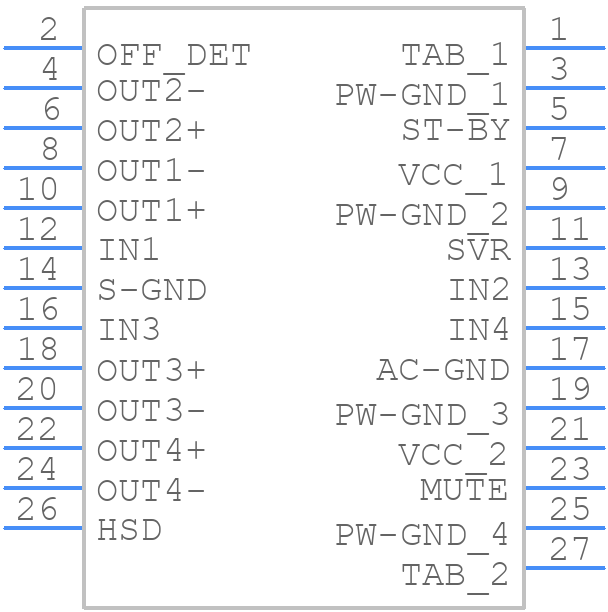

TDA7850A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

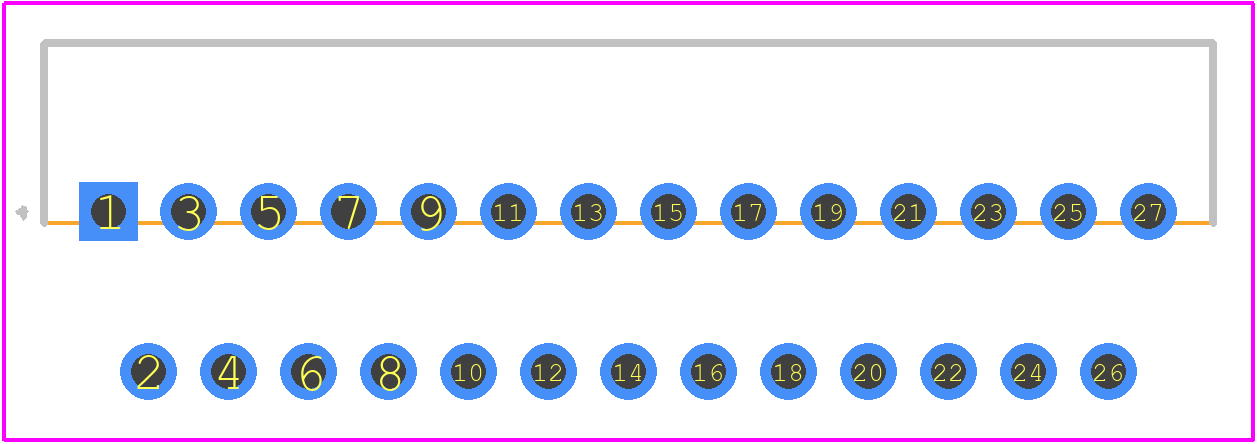

TDA7850A - STMicroelectronics PCB footprint - Other - Other - TDA7850A-3
click to zoom
3D Models
TDA7850A - STMicroelectronics - 3D model - Other - TDA7850A-3
click to zoom

TDA7850A Details

  • Manufacturer Part Number:

    TDA7850A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Package Description:

    ROHS COMPLIANT, FLEXIWATT-27

  • Pin Count:

    27

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-XZIP-T27

  • JESD-609 Code:

    e3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    27

  • Output Power-Nom:

    30 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP27,.16,.16,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    280 mA

  • Surface Mount:

    NO

  • Technology:

    MOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

TDA7850A Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Additionally, it's recommended to use a common mode filter and a shielded inductor to reduce EMI.
  • Use a combination of ceramic and electrolytic capacitors for power supply decoupling. Place a 100nF ceramic capacitor close to the IC, and a 10uF electrolytic capacitor further away. Ensure the capacitors are connected to a solid ground plane.
  • Use a heat sink with a thermal resistance of less than 10°C/W. Apply a thermal interface material (TIM) between the IC and the heat sink. Ensure good airflow around the heat sink to maintain a junction temperature below 150°C.
  • Check the audio signal path for any signs of distortion or clipping. Verify the correct configuration of the I2S interface and the audio codec. Use an oscilloscope to measure the audio signal and check for any signs of noise or interference.
  • Implement overcurrent protection using a dedicated IC or a fuse. Monitor the TDA7850A's temperature and shutdown the device if it exceeds 150°C. Use a watchdog timer to detect and reset the device in case of a fault.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7850A Overview

Use the download button to access the TDA7850A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA78, or try a keyword search, such as Audio/Video Amplifiers
