TDA7851FH-QIX - STMicroelectronics

Description: 4 x 48 W MOSFET quad bridge power amplifier

Download TDA7851FH-QIX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

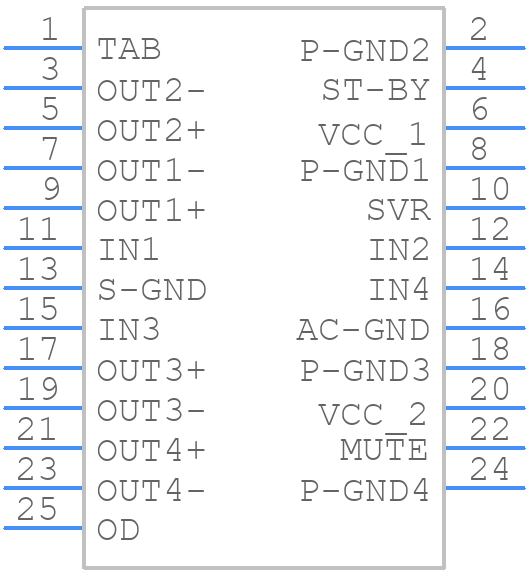

Symbol
TDA7851FH-QIX - STMicroelectronics - PCB symbol
click to zoom

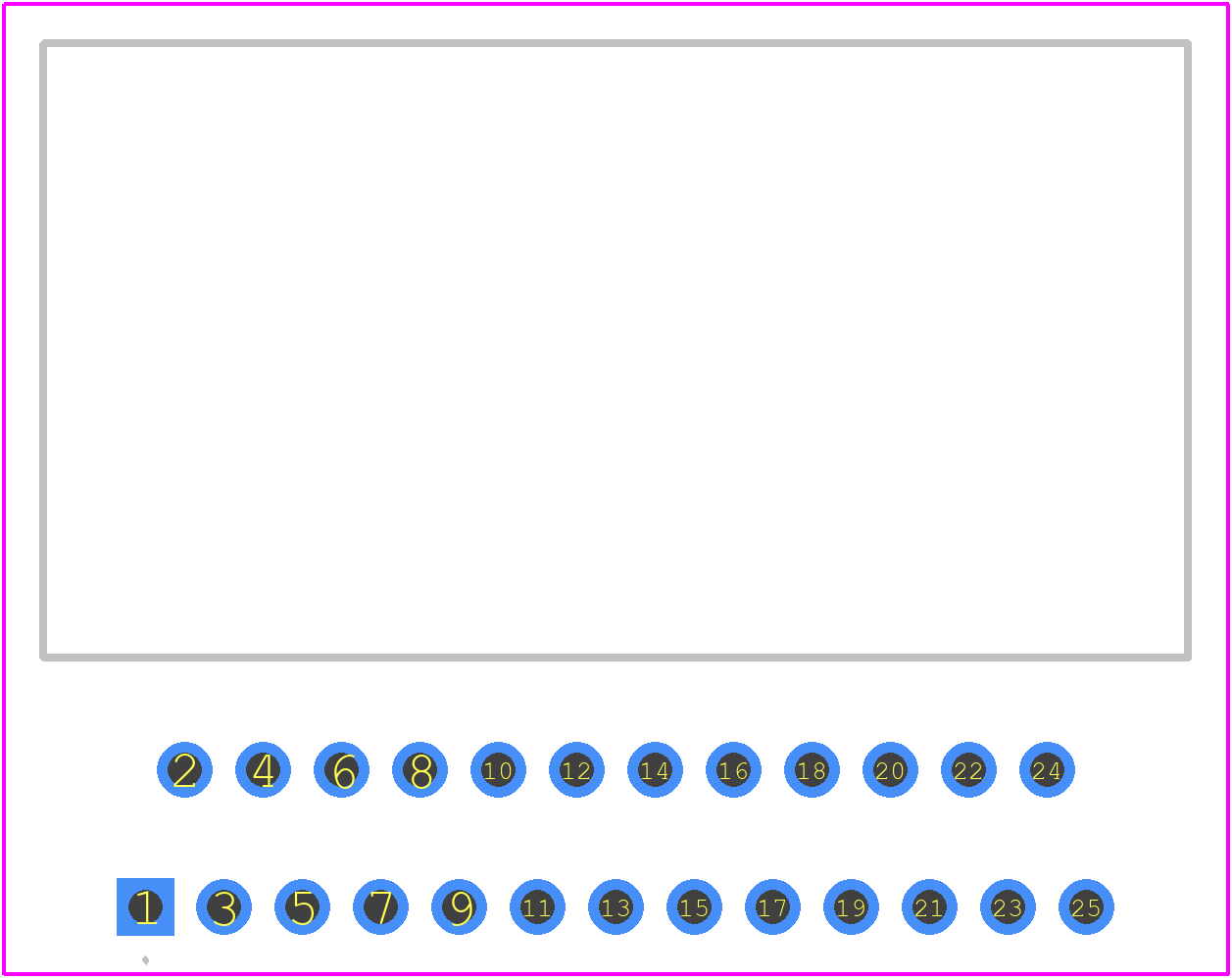

PCB Footprints
TDA7851FH-QIX - STMicroelectronics PCB footprint - Other - Other - TDA7851FH-QIX
click to zoom
3D Models
TDA7851FH-QIX - STMicroelectronics - 3D model - Other - TDA7851FH-QIX
click to zoom

TDA7851FH-QIX Details

  • Manufacturer Part Number:

    TDA7851FH-QIX

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    FLEXIWATT 25 HB

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.4

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

TDA7851FH-QIX Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • STMicroelectronics provides EMC guidelines in the application note AN2863, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference.
  • The maximum junction temperature (Tj) for the TDA7851FH-QIX is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • Yes, the TDA7851FH-QIX is AEC-Q100 qualified, which means it meets the automotive industry's standards for reliability and performance. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device meets the specific requirements of the automotive application.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2863, which includes common issues, symptoms, and solutions for the TDA7851FH-QIX. Additionally, the datasheet provides guidelines for debugging and fault detection.
