TDA7851L - STMicroelectronics

Description: Amplifier IC 4-Channel (Quad) Class AB 25-Flexiwatt (Vertical)

Download TDA7851L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

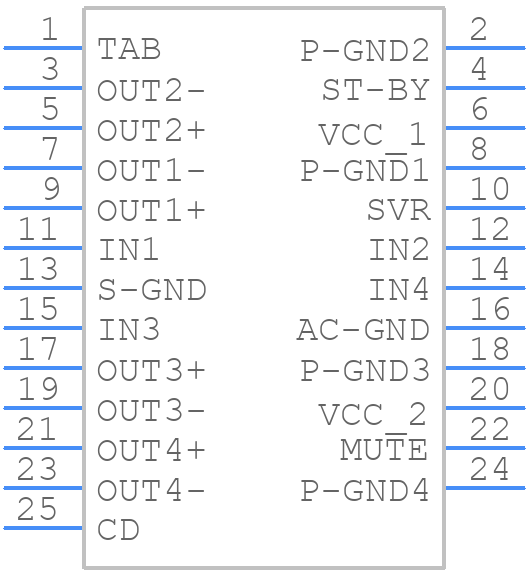

TDA7851L - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

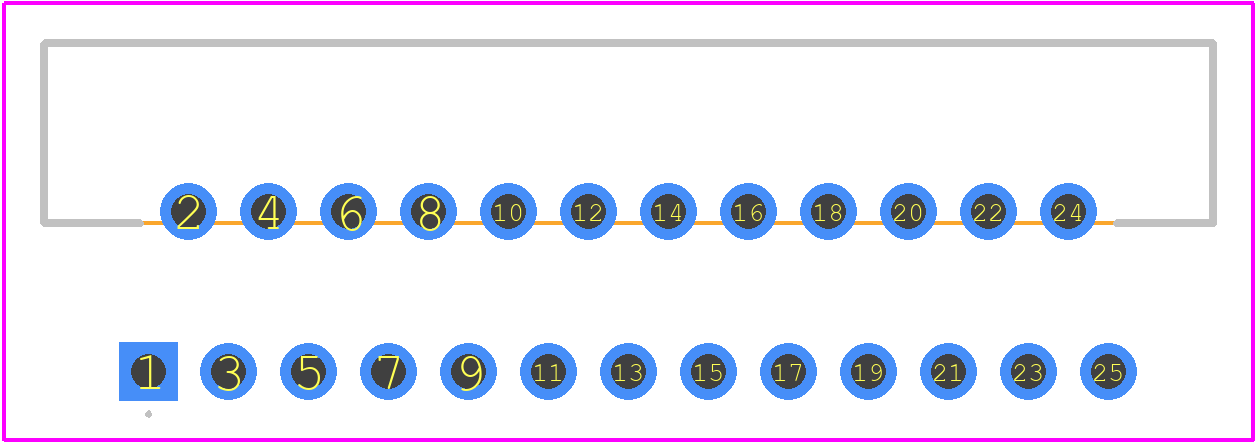

TDA7851L - STMicroelectronics PCB footprint - Other - Other - TDA7851L-1
click to zoom
3D Models
TDA7851L - STMicroelectronics - 3D model - Other - TDA7851L-1
click to zoom

TDA7851L Details

  • Manufacturer Part Number:

    TDA7851L

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FLEXIWATT-25

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    100 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    26 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-XZFM-T25

  • JESD-609 Code:

    e3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    48 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

TDA7851L Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TDA7851L involves placing the device near the audio input connectors, using a ground plane to minimize noise, and keeping the analog and digital grounds separate. A 4-layer PCB with a dedicated ground plane is recommended.
  • To optimize the TDA7851L for low noise and distortion, ensure proper power supply decoupling, use a low-noise voltage regulator, and minimize the length of the input traces. Additionally, use a high-quality audio capacitor and ensure the PCB layout is optimized for minimal noise coupling.
  • The maximum power supply voltage for the TDA7851L is 12V, but it's recommended to operate the device at a voltage between 9V and 10V for optimal performance and to minimize power consumption.
  • The TDA7851L can be configured for different audio input sources by adjusting the input impedance and gain settings. The device has multiple input channels, and the input selection can be controlled through the I2C interface. Refer to the datasheet for specific register settings and configuration details.
  • The maximum output power of the TDA7851L is 2 x 25W into a 4Ω load, but this can be increased to 2 x 50W into a 2Ω load with an external amplifier. The output power can be limited by adjusting the gain settings and output stage configuration.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7851L Overview

Use the download button to access the TDA7851L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA78, or try a keyword search, such as Audio/Video Amplifiers
