A good PCB layout for the TDA8020HL/C2,118 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the antenna. Additionally, ensure that the PCB traces are short and direct, and that the decoupling capacitors are placed as close as possible to the device.
To ensure the TDA8020HL/C2,118 operates within the specified temperature range, ensure good thermal design and heat dissipation on the PCB. Use thermal vias, thermal pads, and a heat sink if necessary. Also, avoid blocking airflow around the device and ensure the device is not exposed to extreme temperatures during storage or operation.
When designing a power supply for the TDA8020HL/C2,118, critical components to consider include the voltage regulator, decoupling capacitors, and filter components. Ensure the power supply can provide a stable voltage within the recommended range, and that the decoupling capacitors are placed close to the device to minimize noise and ripple.
To troubleshoot issues with the TDA8020HL/C2,118, start by checking the power supply and ensuring it is within the recommended range. Verify that the device is properly configured and that the antenna is properly connected. Use a logic analyzer or oscilloscope to debug the digital signals, and check for any signs of overheating or physical damage to the device.
To ensure electromagnetic compatibility (EMC) with the TDA8020HL/C2,118, key considerations include using a metal shielded enclosure, keeping the device away from other RF sources, and using a common mode choke or ferrite bead to filter out electromagnetic interference (EMI). Additionally, ensure the PCB is designed with EMC in mind, using techniques such as grounding, shielding, and filtering.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDA8020HL/C2,118 Overview

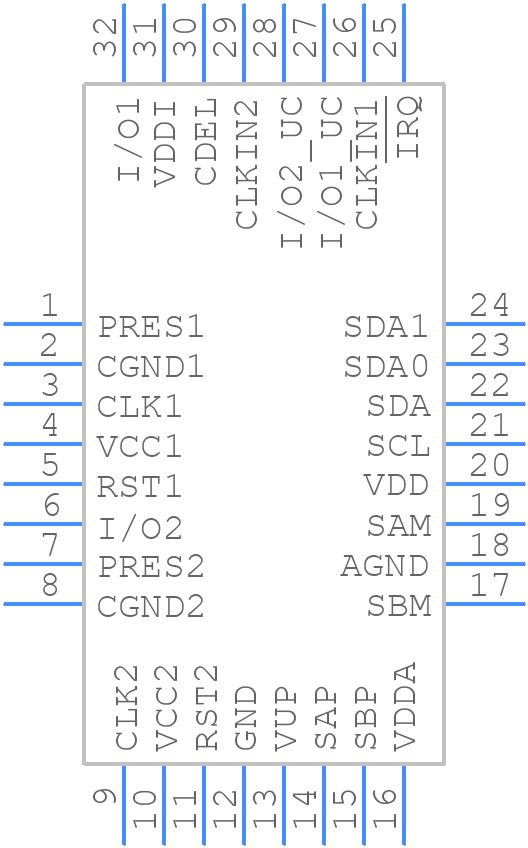

Use the download button to access the TDA8020HL/C2,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA80,
or try a keyword search, such as Other Consumer ICs
About NXP
NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more.
NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
