TDA8362 - NXP

TDA8362 Details

• Manufacturer Part Number:

  TDA8362

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

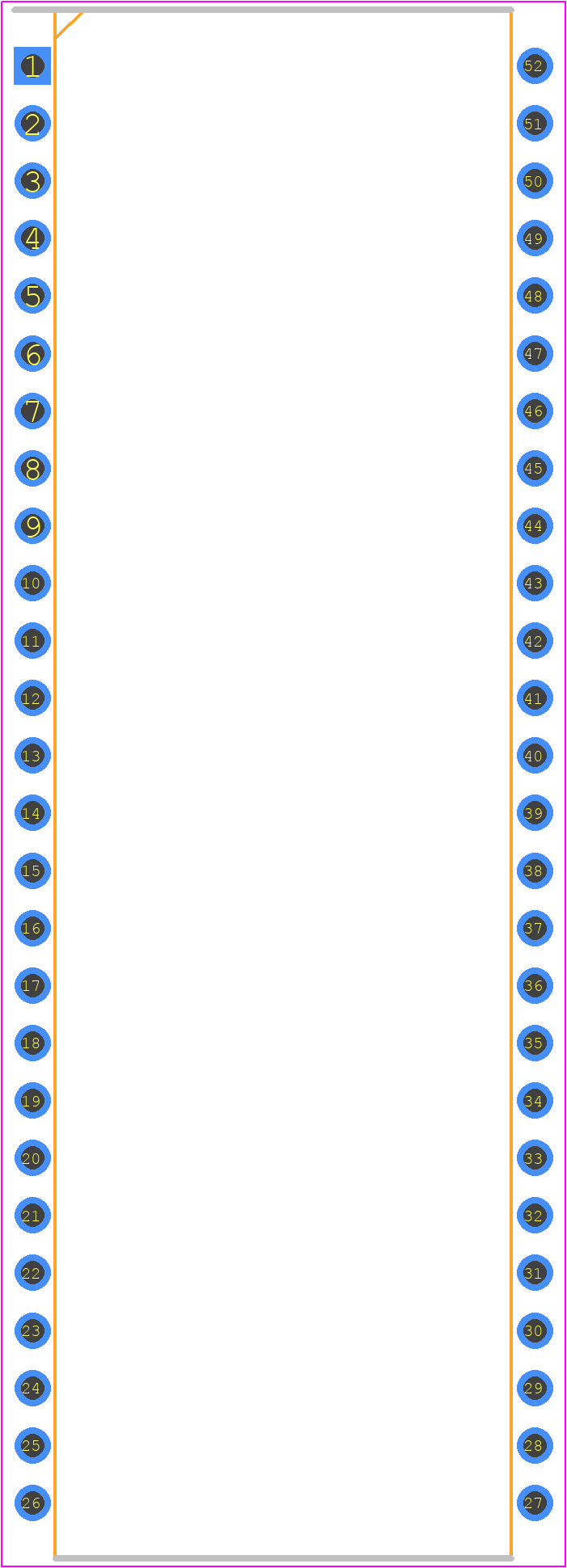

• Package Description:

  0.600 INCH, SHRINK, PLASTIC, SOT-247AG, DIP-52

• Pin Count:

  52

• HTS Code:

  8542.39.00.60

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Consumer IC Type:

  CONSUMER CIRCUIT

• JESD-30 Code:

  R-PDIP-T52

• Length:

  47.47 mm

• Number of Functions:

  1

• Number of Terminals:

  52

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -25 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SDIP

• Package Equivalence Code:

  SDIP52,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  8.8 V

• Supply Voltage-Min (Vsup):

  7.2 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  OTHER

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.778 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
