- Stock & Prices $ Price & Stock for TDA8444AT/N4,112
- Part Number TDA8444AT/N4,112
- Manufacturer NXP
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO20_
- Released Date Jul 3, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA8444AT/N4,112 Details
-
Manufacturer Part Number:
TDA8444AT/N4,112
-
Brand Name:
NXP Semiconductor
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.39.00.40
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
-
Analog Output Voltage-Max:
10 V
-
Analog Output Voltage-Min:
0.8 V
-
Converter Type:
D/A CONVERTER
-
Input Bit Code:
BINARY
TDA8444AT/N4,112 Frequently Asked Questions (FAQs)
-
A good PCB layout for the TDA8444AT should ensure that the input and output stages are separated, with the input stage connected to the analog ground and the output stage connected to the digital ground. Additionally, decoupling capacitors should be placed close to the device, and the power supply lines should be routed away from the analog signals.
-
To ensure EMC with the TDA8444AT, it is recommended to use a shielded enclosure, keep the device away from sources of electromagnetic interference (EMI), and use EMI filters on the input and output lines. Additionally, the PCB layout should be designed to minimize radiation and susceptibility to EMI.
-
The TDA8444AT is rated for operation from -40°C to +125°C, but the maximum operating temperature range may vary depending on the specific application and the device's power dissipation. It is recommended to consult the datasheet and perform thermal analysis to determine the maximum operating temperature range for a specific design.
-
To troubleshoot issues with the TDA8444AT, it is recommended to check the power supply voltage, decoupling capacitors, and PCB layout. Ensure that the device is properly biased, and the input and output stages are properly terminated. Use an oscilloscope to measure the output signal and check for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
-
Yes, the TDA8444AT is suitable for use in high-reliability and automotive applications. It is manufactured using a high-reliability process, and it meets the requirements of the AEC-Q100 standard for automotive applications. However, it is recommended to consult the datasheet and application notes for specific guidance on using the device in these applications.
Trust Checks
Community Provided
System Verified
Community Approved
TDA8444AT/N4,112 Overview

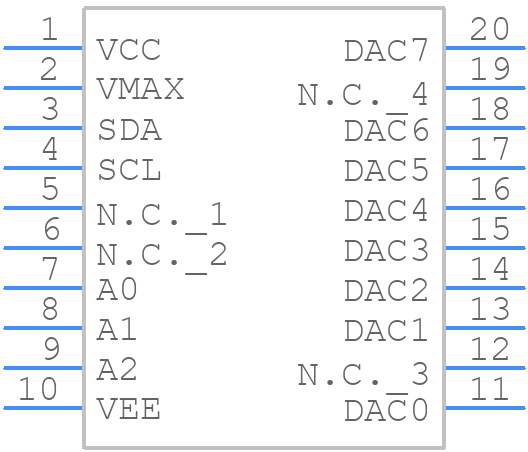

Use the download button to access the TDA8444AT/N4,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA84,
or try a keyword search, such as Digital to Analog Converters
