TDA8542TS/N1,112 - NXP

Description: plastic shrink small outline package; 20 leads; body width 4.4 mm SOT266-1

Download TDA8542TS/N1,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

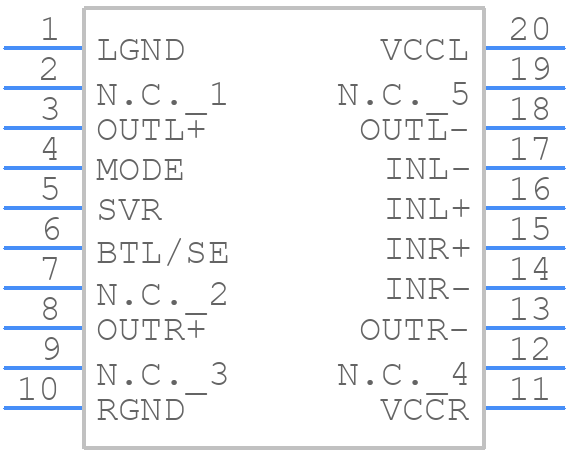

TDA8542TS/N1,112 - NXP - PCB symbol
click to zoom
PCB Footprints
TDA8542TS/N1,112 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TDA8542TS/N1,112
click to zoom
3D Models
TDA8542TS/N1,112 - NXP - 3D model - Small Outline Packages - TDA8542TS/N1,112
click to zoom

TDA8542TS/N1,112 Details

  • Manufacturer Part Number:

    TDA8542TS/N1,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP2

  • Package Description:

    4.40 MM, PLASTIC, SOT-266-1, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    SOT266-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Additional Feature:

    ALSO WORKS WITH 3.3V SUPPLY

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.7 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Current-Max:

    22 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

TDA8542TS/N1,112 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA8542TS involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
  • To ensure the TDA8542TS operates within its recommended operating conditions, make sure to provide a stable power supply within the recommended voltage range (4.5V to 5.5V), keep the junction temperature below 150°C, and avoid exceeding the maximum ratings for input and output currents.
  • To filter out noise and interference in the TDA8542TS output, use a low-pass filter with a cutoff frequency above the audio bandwidth (e.g., 100 kHz). You can also use a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • Yes, the TDA8542TS can be used in battery-powered devices. To minimize power consumption, use a low-dropout voltage regulator, turn off the device when not in use, and optimize the power-down mode to reduce standby current.
  • To troubleshoot issues with the TDA8542TS, start by checking the power supply voltage and ensuring it's within the recommended range. Then, verify that the input signal is within the recommended amplitude and frequency range. Use an oscilloscope to analyze the output signal and identify any distortion or noise. Finally, check the PCB layout and ensure that it's optimized for the TDA8542TS.
