TDA8543T/N1,512 footprint, schematic symbol and 3D model by NXP

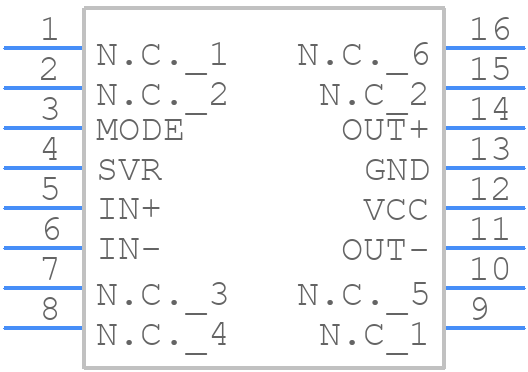

Symbol

click to zoom

PCB Footprints

TDA8543T/N1,512 - NXP PCB footprint - Other - Other - SOT109-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TDA8543T/N1,512
Part Number TDA8543T/N1,512
Manufacturer NXP
Pin Count 16
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOT109-1
Released Date Aug 15, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TDA8543T/N1,512 Details

Manufacturer Part Number:
TDA8543T/N1,512
Source Url Status Check Date:
2013-06-14 00:00:00
Brand Name:
NXP Semiconductor
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SOP
Package Description:
3.90 MM, PLASTIC, MS-012, SOT109-1, SOP-16
Pin Count:
16
Manufacturer Package Code:
SOT109-1
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
NXP Semiconductors
YTEOL:
0
Bandwidth-Nom:
20 kHz
Consumer IC Type:
AUDIO AMPLIFIER
Gain:
20 dB
Harmonic Distortion:
10%
JESD-30 Code:
R-PDSO-G16
Length:
9.9 mm
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Power-Nom:
2.2 W
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Current-Max:
12 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
2.2 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
3.9 mm
