TDA8547TS/N1,112 footprint, schematic symbol and 3D model by NXP

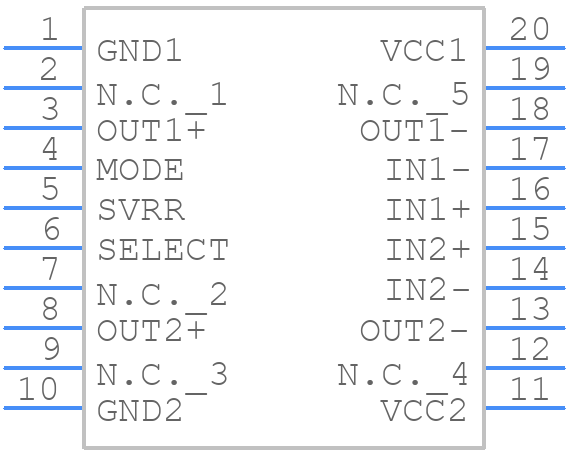

Symbol

click to zoom

PCB Footprints

TDA8547TS/N1,112 - NXP PCB footprint - Other - Other - SOT266-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TDA8547TS/N1,112
Part Number TDA8547TS/N1,112
Manufacturer NXP
Pin Count 20
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOT266-1
Released Date Aug 15, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TDA8547TS/N1,112 Details

Manufacturer Part Number:
TDA8547TS/N1,112
Source Url Status Check Date:
2013-06-14 00:00:00
Brand Name:
NXP Semiconductor
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SSOP2
Package Description:
4.40 MM, PLASTIC, MO-152, SOT266-1, SSOP-20
Pin Count:
20
Manufacturer Package Code:
SOT266-1
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
NXP Semiconductors
YTEOL:
0
Bandwidth-Nom:
20 kHz
Consumer IC Type:
AUDIO AMPLIFIER
Harmonic Distortion:
10%
JESD-30 Code:
R-PDSO-G20
Length:
6.5 mm
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Power-Nom:
1.2 W
Package Body Material:
PLASTIC/EPOXY
Package Code:
LSSOP
Package Equivalence Code:
SSOP20,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Qualification Status:
Not Qualified
Seated Height-Max:
1.5 mm
Supply Current-Max:
22 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
2.2 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm

TDA8547TS/N1,112 Frequently Asked Questions (FAQs)

A good PCB layout for the TDA8547TS/N1,112 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure EMC with the TDA8547TS/N1,112, use a shielded enclosure, keep the device away from antennas and other RF sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, follow good PCB design practices, such as using a solid ground plane and minimizing loop areas.
The maximum power dissipation of the TDA8547TS/N1,112 is dependent on the operating conditions and package type. To ensure it doesn't overheat, use a heat sink or thermal pad, and ensure good airflow around the device. Also, follow the recommended operating conditions and thermal management guidelines in the datasheet.
The TDA8547TS/N1,112 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure the device is operated within the recommended temperature range, and consider using thermal management techniques, such as heat sinks or thermal pads, to maintain a safe operating temperature.
To troubleshoot issues with the TDA8547TS/N1,112, start by verifying the PCB layout and component values, and ensure the device is operated within the recommended conditions. Use oscilloscopes and spectrum analyzers to measure the device's output and identify any oscillations or instability. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
