- Stock & Prices $ Price & Stock for TDA8561Q/N3S,112
- Part Number TDA8561Q/N3S,112
- Manufacturer NXP
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Transistor Outline, Vertical

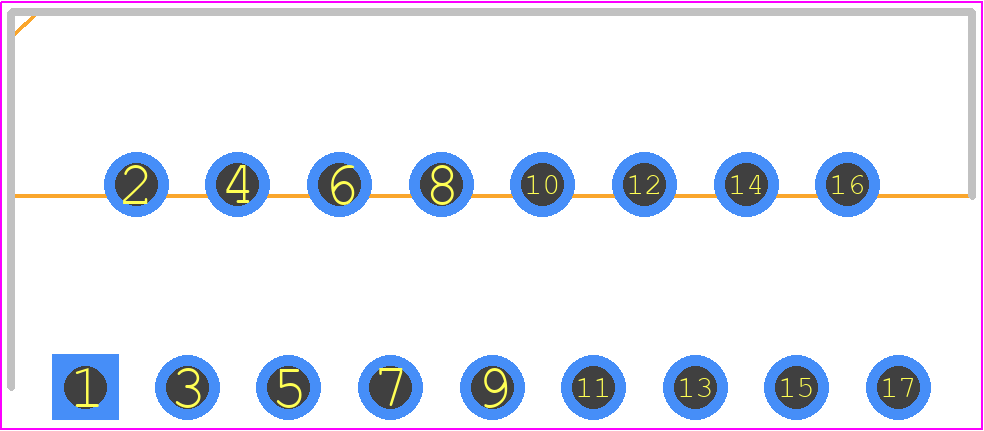

- Footprint Name Transistor Outline, Vertical - SOT243-1
- Released Date Nov 25, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA8561Q/N3S,112 Details
-
Manufacturer Part Number:
TDA8561Q/N3S,112
-
Brand Name:
NXP Semiconductor
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
ZIP
-
Package Description:
POWER, PLASTIC, SOT-243-1, DIL-BENT-SIL, 17 PIN
-
Pin Count:
17
-
Manufacturer Package Code:
SOT243-1
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
NXP Semiconductors
TDA8561Q/N3S,112 Frequently Asked Questions (FAQs)
-
A good PCB layout for the TDA8561Q/N3S,112 involves keeping the analog and digital grounds separate, using a star-point grounding system, and placing the decoupling capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
-
To optimize thermal performance, ensure good airflow around the IC, use a heat sink if possible, and avoid blocking the airflow around the IC. Also, ensure that the PCB is designed to dissipate heat efficiently, and consider using thermal vias to dissipate heat from the top layer to the bottom layer.
-
The TDA8561Q/N3S,112 has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions when handling the IC. Use an ESD wrist strap or mat, and ensure that the PCB is designed with ESD protection in mind, such as using ESD protection diodes and resistors.
-
To troubleshoot issues with the TDA8561Q/N3S,112, start by checking the power supply voltage and ensuring that it's within the recommended range. Check the input and output signals using an oscilloscope, and verify that the IC is properly configured. Use the datasheet and application notes to identify potential issues and solutions.
-
To test and measure the performance of the TDA8561Q/N3S,112, use a signal generator to provide a known input signal, and measure the output signal using an oscilloscope or a spectrum analyzer. Use the datasheet and application notes to determine the recommended test procedures and measurement techniques.
Trust Checks
Expert Contribution
System Verified
Community Approved
TDA8561Q/N3S,112 Overview

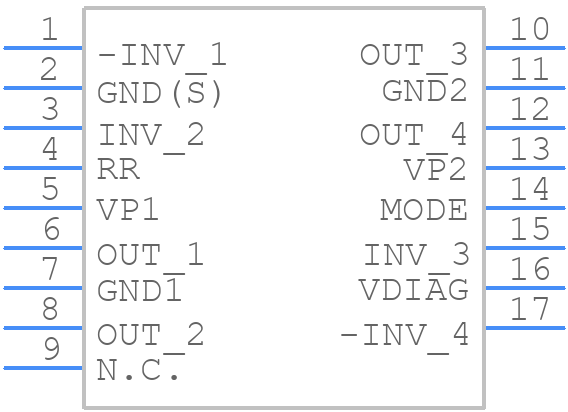

Use the download button to access the TDA8561Q/N3S,112 schematic symbol, PCB footprint, and 3D model.
