TDA8932BT/N2,112 - NXP

Description: Audio Amp Speaker 1-CH Mono/2-CH Stereo 55W Class-D 32-Pin SO Bulk

Download TDA8932BT/N2,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

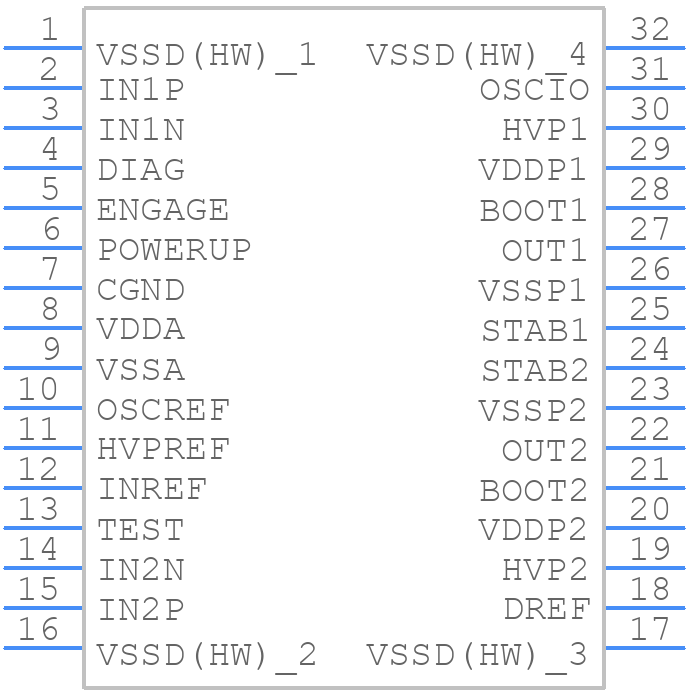

Symbol
TDA8932BT/N2,112 - NXP - PCB symbol
click to zoom
PCB Footprints
TDA8932BT/N2,112 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT287-1
click to zoom
3D Models
TDA8932BT/N2,112 - NXP - 3D model - Small Outline Packages - SOT287-1
click to zoom

TDA8932BT/N2,112 Details

  • Manufacturer Part Number:

    TDA8932BT/N2,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOP

  • Package Description:

    7.50 MM , PLASTIC, MO-119, SOT-287-1, SOP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    SOT287-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 10V TO 36V SINGLE SUPPLY

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    36 dB

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e4

  • Length:

    20.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    55 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP32,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

TDA8932BT/N2,112 Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias, and a heat sink. Keep the device away from heat sources and ensure good airflow. Refer to NXP's application note AN11542 for more information.
  • Use the output filter design tool provided by NXP or follow the guidelines in the datasheet. Ensure the filter components are selected based on the output power, frequency, and load impedance. A 2nd-order LC filter is recommended for most applications.
  • Follow the guidelines in the datasheet and application notes for PCB layout, component selection, and shielding. Ensure proper grounding, decoupling, and filtering to minimize EMI. Conduct EMC testing to ensure compliance with relevant standards.
  • Check the PCB layout, thermal design, and component selection. Verify the input and output impedance matching, and ensure proper decoupling and filtering. Use oscilloscopes and spectrum analyzers to diagnose issues. Refer to NXP's application notes and technical support for guidance.
  • Use a signal generator, oscilloscope, and spectrum analyzer to measure parameters like gain, frequency response, and distortion. Follow the test procedures outlined in the datasheet and application notes. Ensure proper calibration and setup of test equipment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA8932BT/N2,112 Overview

Use the download button to access the TDA8932BT/N2,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA89, or try a keyword search, such as Audio/Video Amplifiers
