TDC1000PWR - Texas Instruments

Description: Ultrasonic Sensing Analog Front End for Level, Concentration & Flow Sensing

Download TDC1000PWR Model

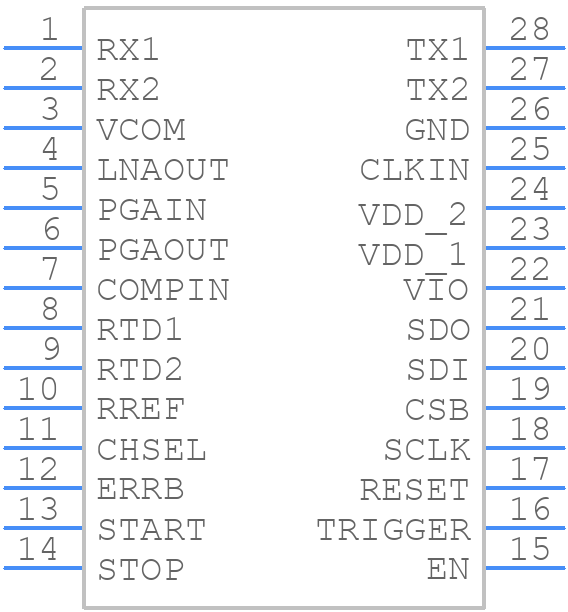

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TDC1000PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
TDC1000PWR - Texas Instruments  - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

TDC1000PWR Details

  • Manufacturer Part Number:

    TDC1000PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TDC1000PWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDC1000PWR involves separating the analog and digital sections, using a solid ground plane, and keeping the power and ground traces as short as possible. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the TDC1000PWR's performance, you should consider factors such as the input signal frequency, amplitude, and impedance. You may need to adjust the gain settings, filter bandwidth, and threshold levels to suit your specific application. Additionally, you can use the device's built-in calibration features to optimize its performance.
  • When selecting a power supply for the TDC1000PWR, consider the device's power consumption, voltage tolerance, and noise sensitivity. A low-noise, low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR) is recommended. Additionally, ensure the power supply can provide the required current and voltage stability.
  • To troubleshoot issues with the TDC1000PWR, start by checking the device's power supply, clock signal, and input signal integrity. Verify that the device is properly configured and that the input signals are within the recommended specifications. Use the device's built-in diagnostic features, such as the error flags and status registers, to identify the source of the issue.
  • The TDC1000PWR is sensitive to temperature, so it's essential to ensure proper thermal management. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Operate the device within the recommended temperature range, and consider using thermal monitoring and shutdown features to prevent overheating.
