Texas Instruments provides a recommended PCB layout in the TDC1011PW evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The TDC1011PW does not require calibration in the classical sense, as it uses a proprietary time-to-digital conversion technique that is self-calibrating. However, the device does require a one-time initialization sequence to configure the internal registers and set the desired operating mode.
The maximum cable length for the TDC1011PW's analog input signals depends on the specific application and the frequency content of the signals. As a general guideline, Texas Instruments recommends keeping the cable length as short as possible (less than 10 inches) to minimize signal attenuation and noise pickup.
Yes, the TDC1011PW can be used with a non-invasive current sensor, such as a current transformer or a Rogowski coil. However, the device's analog input range and gain settings may need to be adjusted to accommodate the specific sensor output characteristics.
To minimize EMI when using the TDC1011PW, Texas Instruments recommends following proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering components as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDC1011PW Overview

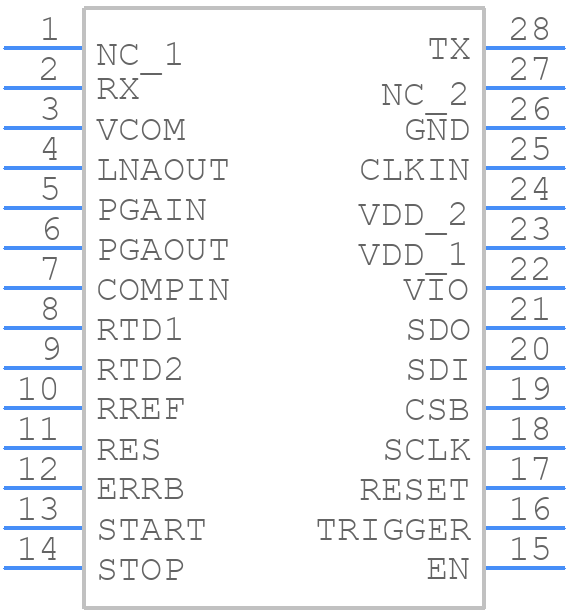

Use the download button to access the TDC1011PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDC10,
or try a keyword search, such as Proximity Sensors
