A good PCB layout for the TDC1011PWR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog power supply and another for the digital power supply.
To optimize the TDC1011PWR for low-power applications, consider using a lower clock frequency, reducing the analog supply voltage, and using the device's built-in power-down modes. Additionally, optimizing the PCB layout to minimize power consumption and using a low-power microcontroller can also help reduce overall power consumption.
To ensure EMI and EMC compliance when using the TDC1011PWR, consider using a shielded enclosure, keeping the device away from high-frequency sources, and using a common-mode choke to reduce emissions. Additionally, using a low-pass filter on the analog input and a ferrite bead on the power supply can help reduce emissions.
To troubleshoot issues with the TDC1011PWR's ADC, start by checking the analog input signal quality, ensuring it's within the recommended range and not clipping. Verify the ADC clock frequency and ensure it's within the recommended range. Also, check the digital output data for errors and ensure the microcontroller is properly configured to communicate with the TDC1011PWR.
The TDC1011PWR has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, consider using a heat sink or thermal pad, and ensure good airflow around the device. Additionally, follow the recommended PCB layout guidelines to minimize thermal resistance and ensure the device is operated within its recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDC1011PWR Overview

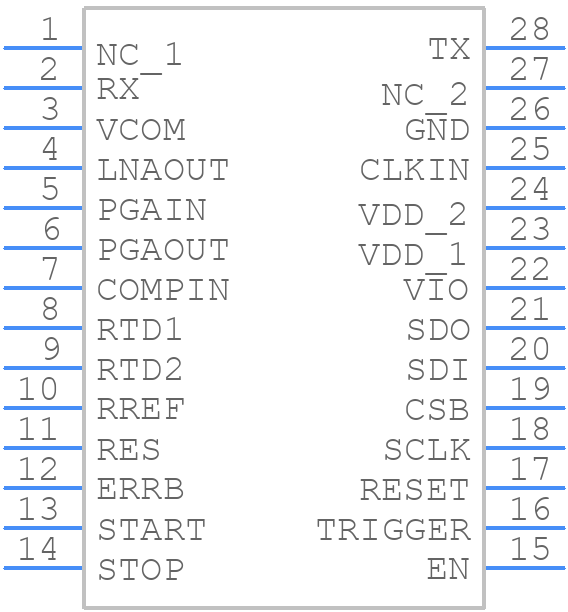

Use the download button to access the TDC1011PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDC10,
or try a keyword search, such as Proximity Sensors
