TDC7200PW - Texas Instruments

Description: Time-to-Digital Converter for Time-of-Flight Applications in LIDAR, Magnetostrictive and Flow Meters

Download TDC7200PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

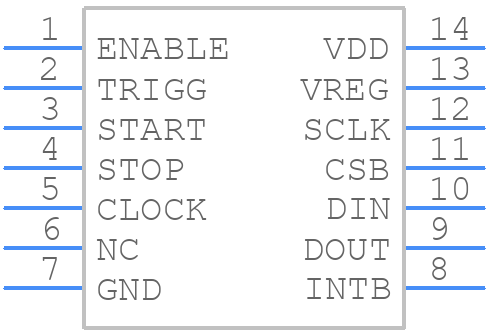

TDC7200PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TDC7200PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW
click to zoom
3D Models
TDC7200PW - Texas Instruments - 3D model - Small Outline Packages - PW
click to zoom

TDC7200PW Details

  • Manufacturer Part Number:

    TDC7200PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP, TSSOP14,.25

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    2 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TDC7200PW Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDA (analog power) first, followed by VDD (digital power) and then the clock signal. This ensures proper initialization of the device.
  • To optimize for low power consumption, use the lowest possible clock frequency, disable unused features, and adjust the ADC resolution and sampling rate according to your application's requirements. Additionally, consider using the device's power-down modes when not in use.
  • The maximum input signal amplitude that the TDC7200PW can handle is 1.5 Vpp differential. Exceeding this amplitude may result in signal distortion or device damage.
  • To ensure accurate time-to-digital conversion, ensure that the input signal is properly conditioned, the clock signal is stable and jitter-free, and the device is properly calibrated. Additionally, consider using the device's built-in calibration features and adjusting the ADC resolution and sampling rate according to your application's requirements.
  • Yes, the TDC7200PW can be used in a multi-channel configuration. The device has a built-in multiplexer that allows it to measure multiple input channels. However, the maximum number of channels and the channel switching time depend on the specific application and device configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDC7200PW Overview

Use the download button to access the TDC7200PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDC72, or try a keyword search, such as Other Signal Circuits
