A good PCB layout for the TDC7201ZAXT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog input signal source. Additionally, using a low-ESR capacitor for power decoupling and minimizing the length of the analog input traces can help reduce noise and ensure accurate time-to-digital conversion.
Calibration of the TDC7201ZAXT involves adjusting the internal delay lines to compensate for process variations. This can be done using the device's built-in calibration mode, which involves applying a known input signal and adjusting the delay lines to achieve the desired accuracy. The calibration process typically involves iterating through a series of measurements and adjustments until the desired level of accuracy is achieved.
The maximum input frequency that the TDC7201ZAXT can handle is 250 MHz. However, the device's accuracy may be affected at higher frequencies due to the limitations of the internal delay lines. As the input frequency increases, the device's accuracy may degrade due to the increased noise and jitter. To achieve the highest possible accuracy, it is recommended to operate the device at frequencies below 100 MHz.
The TDC7201ZAXT uses a metastability resolver to handle metastable states that can occur during the time-to-digital conversion process. However, metastability can still occur in certain circumstances, and system designers should take steps to mitigate its effects. This can include using synchronization circuits, implementing error detection and correction mechanisms, and ensuring that the device is operated within its specified parameters.
The TDC7201ZAXT has a typical power consumption of 150 mW at 1.8 V and 25°C. The device also has a thermal resistance of 30°C/W, which means that it can dissipate up to 500 mW of power without exceeding the maximum junction temperature. System designers should take these characteristics into account when designing the power supply and thermal management systems for their application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDC7201ZAXT Overview

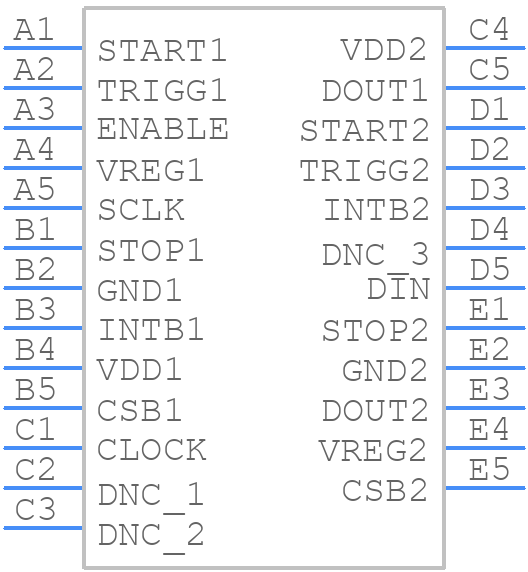

Use the download button to access the TDC7201ZAXT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDC72,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
