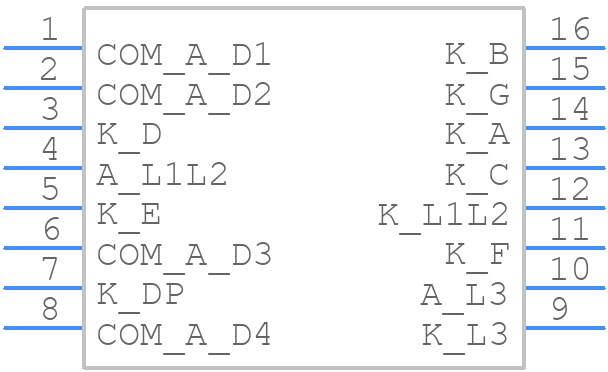

TDCG1050M footprint, schematic symbol and 3D model by Vishay

Symbol

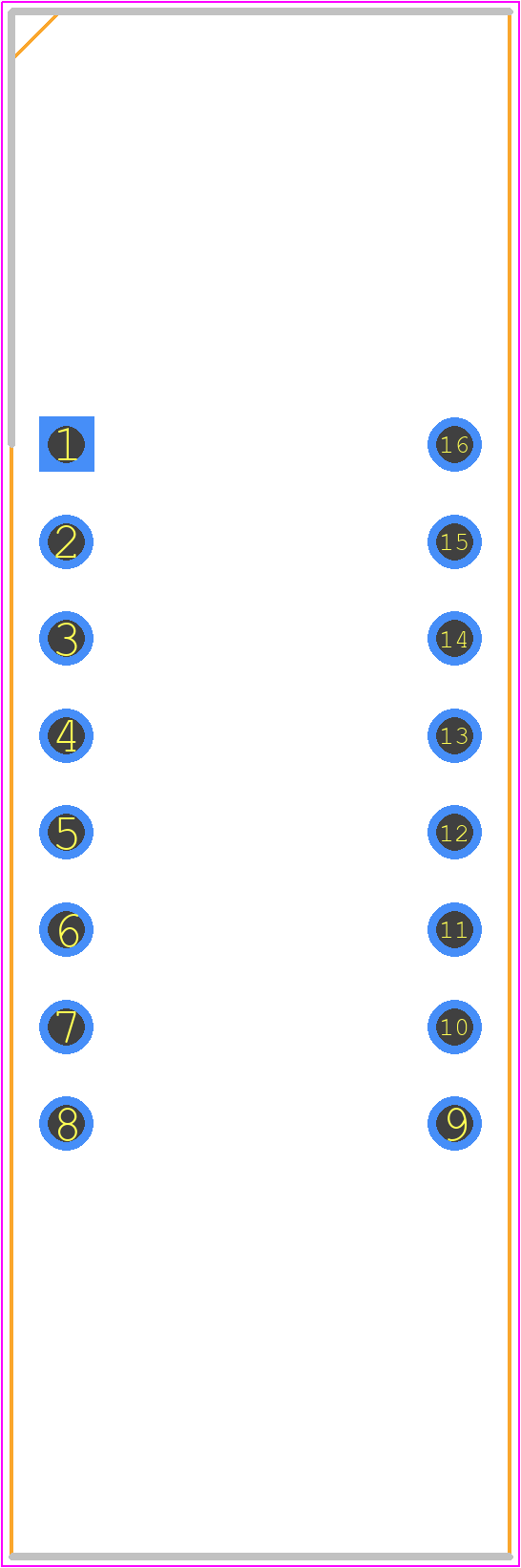

PCB Footprints

3D Models

TDCG1050M Details

A recommended PCB layout for optimal thermal performance would be to use a large copper pad under the device, connected to a thermal via or a heat sink. This helps to dissipate heat efficiently and reduce thermal resistance.
To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point above 217°C. Apply a small amount of solder paste to the pads, and use a reflow oven or a hot air gun to solder the component.
The maximum allowed voltage derating for the TDCG1050M is typically 80% of the rated voltage. This means that if the rated voltage is 50V, the maximum allowed voltage derating would be 40V.
To handle ESD protection for the TDCG1050M, use an ESD wrist strap or mat when handling the component, and ensure that the PCB has ESD protection devices such as TVS diodes or ESD protection arrays.
The recommended storage condition for the TDCG1050M is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. Avoid storing the component in direct sunlight or near heat sources.

Community Provided

System Verified

Community Approved

Use the download button to access the TDCG1050M schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TDCG1, or try a keyword search, such as LED Displays
