Part Image

TDCG1060M - Vishay

Description: Display Modules - LED Character and Numeric Green 7-Segment Clock 4 Character Common Cathode 2V 20mA 0.504" H x 1.583" W x 0.276" D (12.80mm x 40.20mm x 7.00mm) 16-DIP (0.400", 10.16mm)

Download TDCG1060M Model

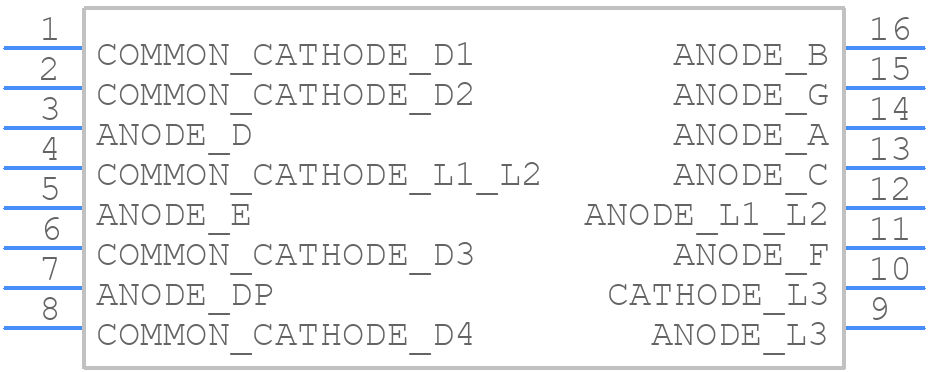

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

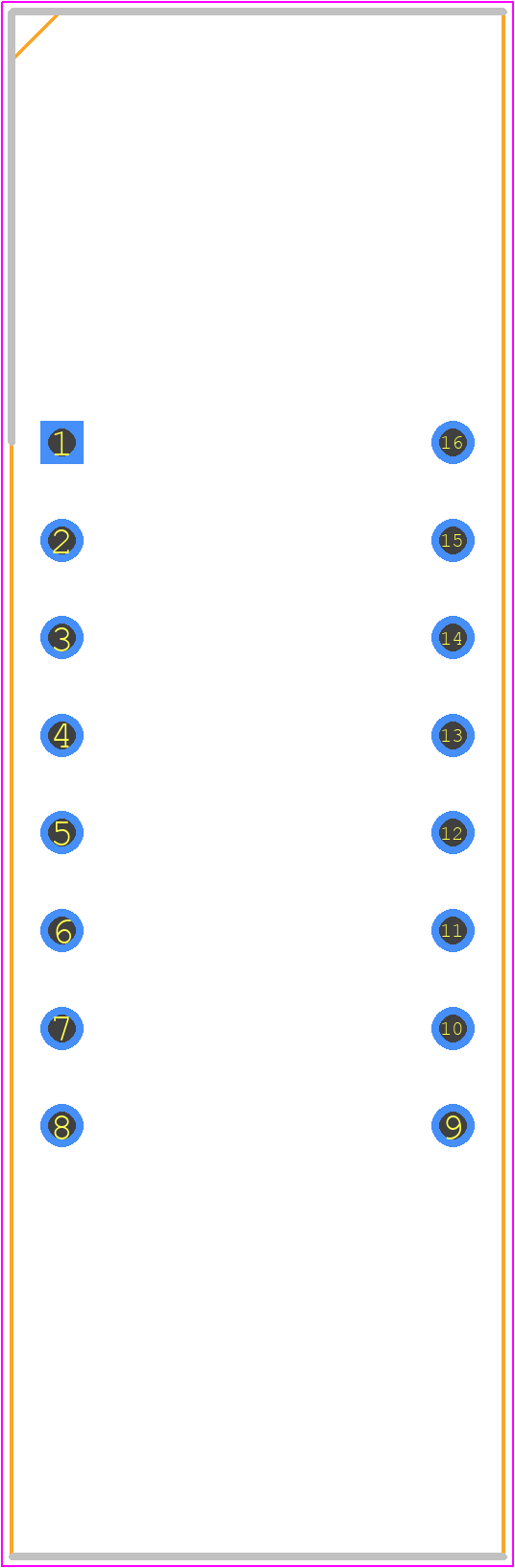

TDCG1060M - Vishay PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - TDCG1060M
click to zoom
3D Models
TDCG1060M - Vishay  - 3D model - Dual-In-Line Sockets - TDCG1060M
click to zoom

TDCG1060M Details

  • Manufacturer Part Number:

    TDCG1060M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.2

  • Color:

    GREEN

  • Color@Wavelength:

    Green-Yellow

  • Configuration:

    COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    10 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.4 V

  • JESD-609 Code:

    e4

  • Number of Characters:

    4

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    CLOCK LED DISPLAY

  • Peak Wavelength:

    575 nm

  • Terminal Finish:

    Tin (Sn)

TDCG1060M Frequently Asked Questions (FAQs)

  • The recommended storage condition for TDCG1060M is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
  • Handle the TDCG1060M by the body, avoid touching the leads or the ceramic capacitor, and use an anti-static wrist strap or mat to prevent electrostatic discharge.
  • The maximum voltage derating for the TDCG1060M is 80% of the rated voltage, to ensure reliable operation and prevent premature failure.
  • Yes, the TDCG1060M is suitable for high-frequency applications up to 1 GHz, but the impedance and ESR may vary with frequency, so it's essential to consult the datasheet and application notes for specific guidance.
  • Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder to the leads, ensuring a smooth, shiny joint. Avoid overheating or applying excessive force, which can damage the capacitor.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDCG1060M Overview

Use the download button to access the TDCG1060M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDCG1, or try a keyword search, such as LED Displays
