TDE1898CFPT - STMicroelectronics

Description: 0.5A high-side driver industrial intelligent power switch

Download TDE1898CFPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

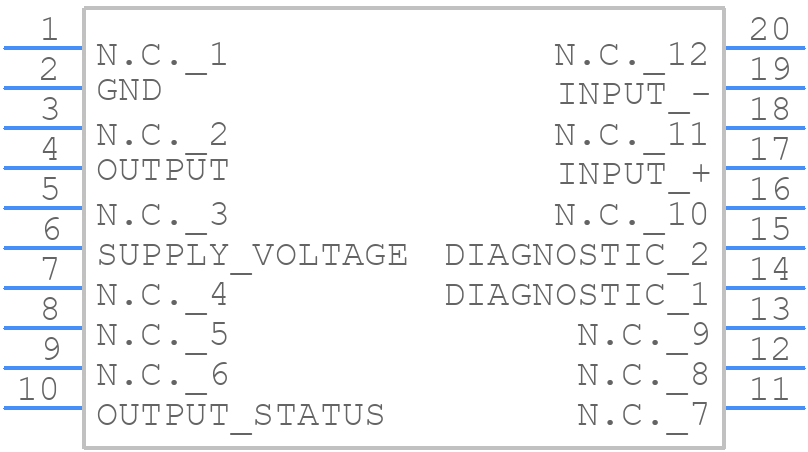

TDE1898CFPT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDE1898CFPT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO20 package-
click to zoom
3D Models
TDE1898CFPT - STMicroelectronics - 3D model - Small Outline Packages - SO20 package-
click to zoom

TDE1898CFPT Details

  • Manufacturer Part Number:

    TDE1898CFPT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Built-in Protections:

    OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current Flow Direction:

    SOURCE

  • Output Peak Current Limit-Nom:

    0.75 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    35 V

  • Supply Voltage-Min:

    18 V

  • Supply Voltage-Nom:

    24 V

  • Supply Voltage1-Max:

    35 V

  • Supply Voltage1-Min:

    9 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    20 µs

  • Turn-on Time:

    100 µs

  • Width:

    7.5 mm

TDE1898CFPT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4923, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Additionally, STMicroelectronics offers a dedicated tool, the STMicroelectronics Component Selector, to help engineers select the correct components based on their specific design requirements.
  • The TDE1898CFPT has an operating temperature range of -40°C to 150°C, but it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Engineers should consult the datasheet and application notes for specific temperature-related guidelines.
  • The TDE1898CFPT has a built-in overcurrent protection feature, which can be enabled by connecting the OCP pin to a suitable resistor and capacitor network. Engineers should refer to the datasheet and application notes for specific implementation guidelines and component values.
  • The recommended startup sequence for the TDE1898CFPT involves powering up the device in a specific order, including the voltage regulator, clock, and other peripherals. Engineers should consult the datasheet and application notes for a detailed startup sequence to ensure proper device operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDE1898CFPT Overview

Use the download button to access the TDE1898CFPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDE18, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
