TDK5110 - Infineon

Description: Infineon TDK5110, RF Transceiver 433MHz to 435MHz Dual Band 16-Pin TSSOP

Download TDK5110 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

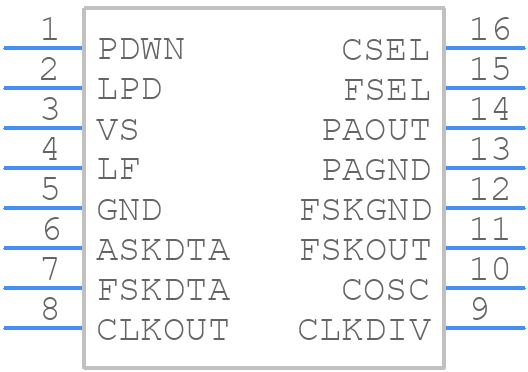

TDK5110 - Infineon - PCB symbol
click to zoom
PCB Footprints
TDK5110 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSSOP-16-8
click to zoom
3D Models
TDK5110 - Infineon - 3D model - Small Outline Packages - PG-TSSOP-16-8
click to zoom

TDK5110 Details

  • Manufacturer Part Number:

    TDK5110

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.019 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

TDK5110 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TDK5110 involves placing the device near the antenna, using a solid ground plane, and minimizing the length of the PCB traces to reduce electromagnetic interference (EMI).
  • To optimize the antenna design for the TDK5110, consider using a 50-ohm impedance antenna, tuning the antenna to the operating frequency, and ensuring the antenna is properly matched to the device.
  • The maximum operating temperature range for the TDK5110 is -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance.
  • To handle ESD protection for the TDK5110, use ESD protection devices such as TVS diodes or ESD arrays, and follow proper handling and storage procedures to prevent damage.
  • The recommended power supply decoupling for the TDK5110 involves using a 10-100 nF capacitor in parallel with a 1-10 μF capacitor, placed as close as possible to the device's power pins.
