TDN3-2415WISM - Traco Power

TDN3-2415WISM Details

• Manufacturer Part Number:

  TDN3-2415WISM

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

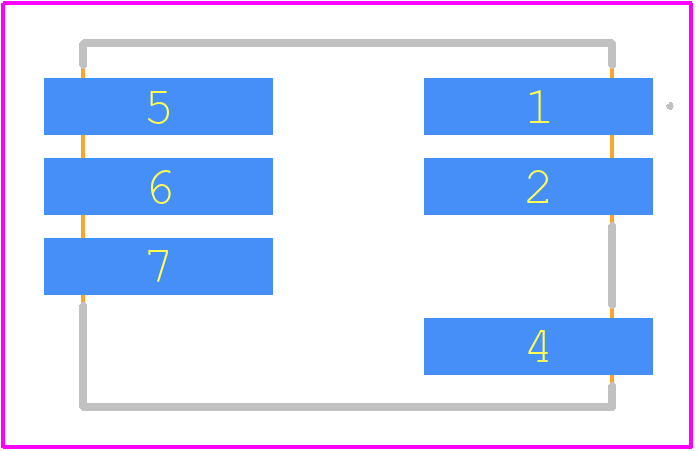

• Package Description:

  SMD-8/6

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• Manufacturer:

  Traco Power

• YTEOL:

  6

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  EN; UL

• Efficiency (Main Output):

  82%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PDMA-N6

• Length:

  13.2 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  1%

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.125 A

• Output Voltage-Max:

  24.24 V

• Output Voltage-Min:

  23.76 V

• Output Voltage-Nom:

  24 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.017675 Vrms

• Seated Height-Max:

  10.7 mm

• Surface Mount:

  YES

• Switching Frequency-Max:

  100 kHz

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  2 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  3 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.01 s

• Width:

  9.1 mm
