TDSG5150-N - Vishay

Description: LED Displays & Accessories 7-Seg Green 13 mm Common anode

Download TDSG5150-N Model

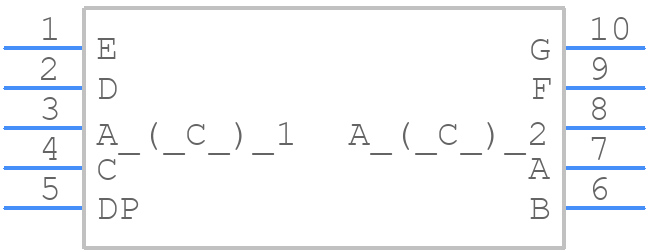

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

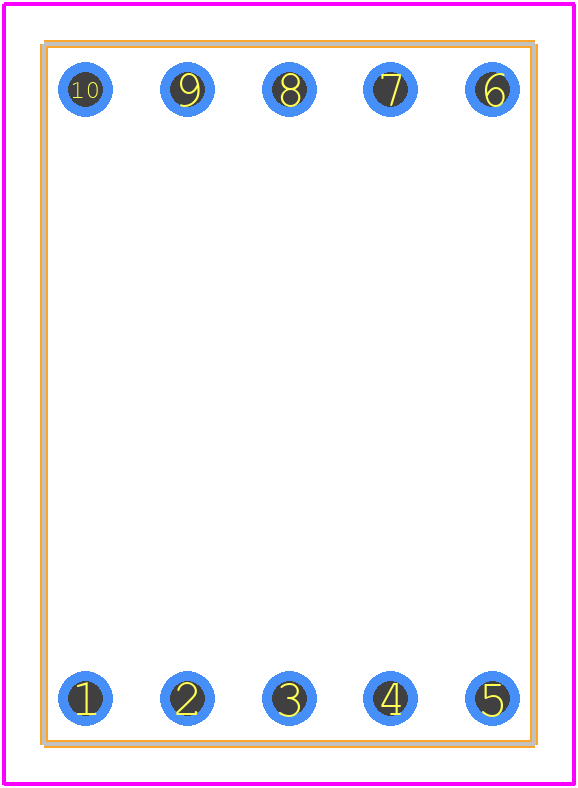

PCB Footprints
TDSG5150-N - Vishay PCB footprint - Other - Other - TDSG5150-N-2
click to zoom
3D Models
TDSG5150-N - Vishay  - 3D model - Other - TDSG5150-N-2
click to zoom

TDSG5150-N Details

  • Manufacturer Part Number:

    TDSG5150-N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    13 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    3 V

  • JESD-609 Code:

    e4

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    565 nm

  • Terminal Finish:

    SILVER
