A good PCB layout for the TDSG5160-MN should minimize parasitic inductance and capacitance. Keep the leads as short as possible, and use a solid ground plane to reduce noise. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure reliability in high-temperature applications, follow the recommended derating curves for voltage and current. Ensure good thermal management by providing adequate heat sinking and airflow. Also, consider using a thermally conductive interface material to improve heat transfer between the device and the heat sink.
The TDSG5160-MN has an internal ESD protection diode, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Yes, the TDSG5160-MN can be used in switching power supply applications. However, ensure that the device is operated within its recommended switching frequency range (typically up to 100 kHz) and that the voltage and current ratings are not exceeded. Also, consider the device's power dissipation and thermal management requirements.
To troubleshoot issues with the TDSG5160-MN, start by verifying the device's operating conditions, including voltage, current, and temperature. Check for proper PCB layout, thermal management, and ESD protection. Use oscilloscopes and thermal imaging cameras to identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting and fault diagnosis.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDSG5160-MN Overview

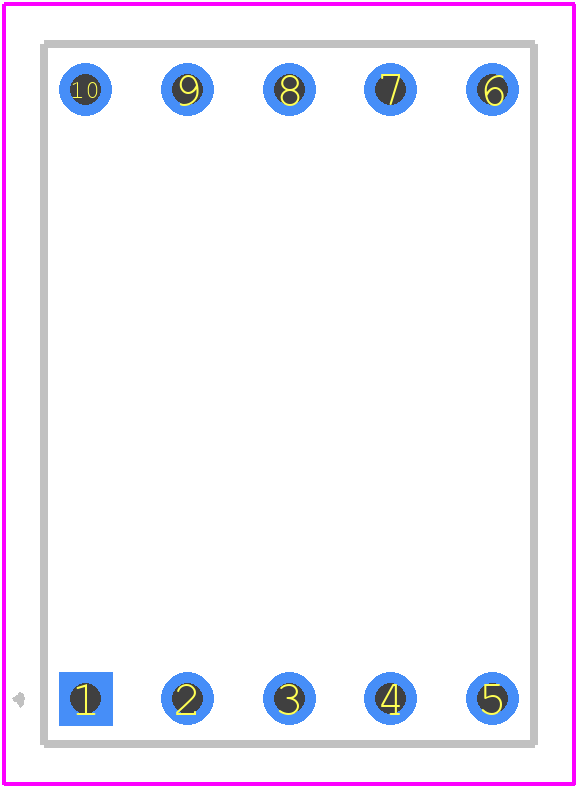

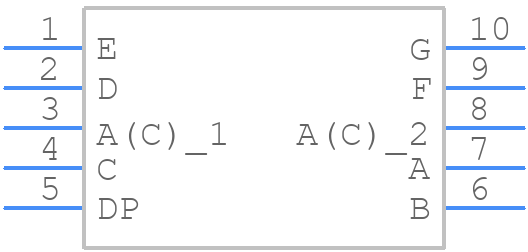

Use the download button to access the TDSG5160-MN schematic symbol, PCB footprint, and 3D model.
