TDSL1150 - Vishay

Description: LED Displays & Accessories 7-Seg Red .18-.26mcd Common Anode

Download TDSL1150 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

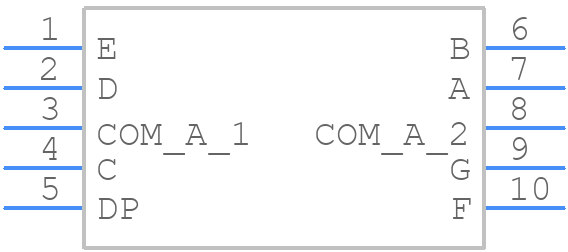

PCB Footprints
TDSL1150 - Vishay PCB footprint - Other - Other - TDSL1150-8
click to zoom
3D Models
TDSL1150 - Vishay  - 3D model - Other - TDSL1150-8
click to zoom

TDSL1150 Details

  • Manufacturer Part Number:

    TDSL1150

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    7 mm

  • Forward Current-Max:

    0.015 A

  • Forward Voltage-Max:

    3 V

  • JESD-609 Code:

    e4

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

  • Terminal Finish:

    Silver (Ag)
