TDSL1160 - Vishay

Description: LED Displays & Accessories 7-Seg Red .18-.26mcd Common Cathode

Download TDSL1160 Model

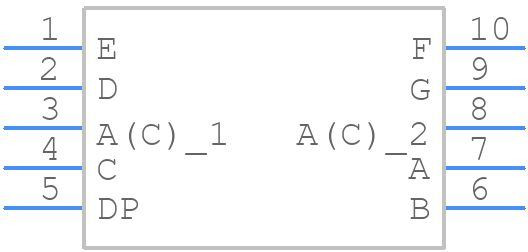

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TDSL1160 - Vishay PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - TDSL1160
click to zoom
3D Models
TDSL1160 - Vishay  - 3D model - Dual-In-Line Sockets - TDSL1160
click to zoom

TDSL1160 Details

  • Manufacturer Part Number:

    TDSL1160

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    7 mm

  • Forward Current-Max:

    0.015 A

  • Forward Voltage-Max:

    3 V

  • JESD-609 Code:

    e4

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

  • Terminal Finish:

    SILVER
