A recommended PCB layout for optimal thermal performance would be to use a large copper area on the top and bottom layers, connected to the thermal pad of the TDSL5160, and to use thermal vias to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a heat spreader, and ensuring good airflow around the device.
Although the datasheet doesn't explicitly state the maximum allowed voltage on the input pins, it's generally recommended to limit the input voltage to the supply voltage (VCC) to prevent damage to the device.
Yes, the TDSL5160 can be used in switching regulator applications, but it's essential to ensure that the device is properly bypassed and decoupled to prevent damage from high-frequency switching noise.
To handle ESD protection for the TDSL5160, it's recommended to use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins, and to follow proper PCB layout and handling practices to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDSL5160 Overview

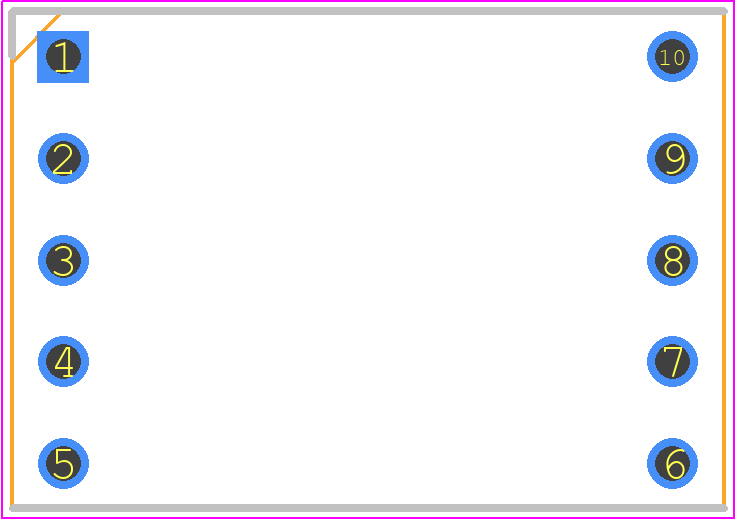

Use the download button to access the TDSL5160 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDSL5,
or try a keyword search, such as LED Displays
