Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TDSO3150
- Part Number TDSO3150
- Manufacturer Temic
- Pin Count 10
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - TDSO3150
- Released Date Nov 26, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDSO3150 Details
-
Manufacturer Part Number:
TDSO3150
-
Part Life Cycle Code:
Transferred
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Temic Semiconductors
-
Color:
ORANGE RED
-
Configuration:
COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
-
Display Height:
10 mm
-
Forward Current-Max:
0.02 A
-
Number of Functions:
1
-
Operating Temperature-Max:
85 °C
-
Operating Temperature-Min:
-40 °C
Trust Checks
Expert Contribution
System Verified
Community Approved
TDSO3150 Overview

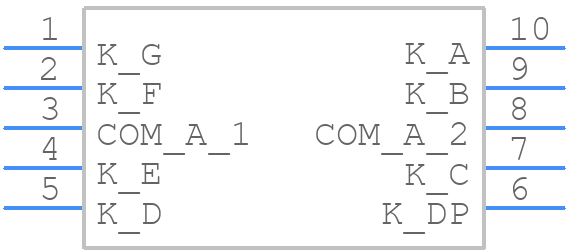

Use the download button to access the TDSO3150 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TDSO3,
or try a keyword search, such as LED Displays
