TDSO3160-L - Vishay

Description: Display Modules - LED Character and Numeric Orange-Red 7-Segment 1 Character Common Cathode 2V 20mA 0.500" H x 0.372" W x 0.252" D (12.60mm x 9.45mm x 6.40mm) 10-DIP (0.300", 7.62mm)

Download TDSO3160-L Model

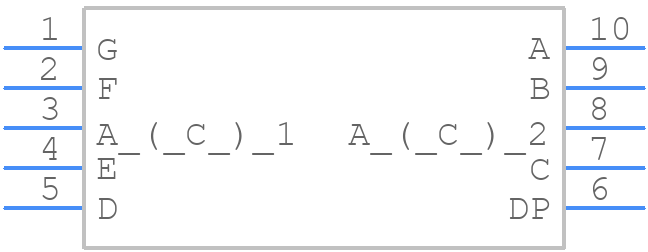

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

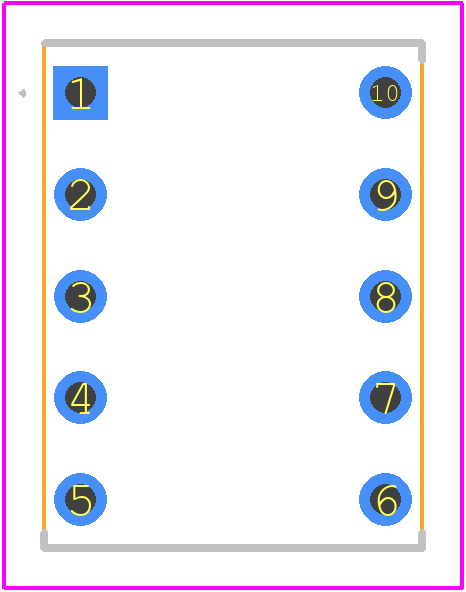

TDSO3160-L - Vishay PCB footprint - Other - Other - TDSO3160-L-3
click to zoom
3D Models
TDSO3160-L - Vishay  - 3D model - Other - TDSO3160-L-3
click to zoom

TDSO3160-L Details

  • Manufacturer Part Number:

    TDSO3160-L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Color:

    ORANGE RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10 mm

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    3 V

  • JESD-609 Code:

    e4

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    630 nm

  • Terminal Finish:

    SILVER

TDSO3160-L Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TDSO3160-L involves keeping the input and output traces as short as possible, using a solid ground plane, and placing a 10nF to 100nF decoupling capacitor between the VIN and GND pins.
  • To ensure the device operates within the specified temperature range, it's essential to provide adequate heat sinking, avoid overheating, and keep the device away from high-temperature sources. The device's thermal pad should be soldered to a copper plane on the PCB to facilitate heat dissipation.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage limiter or a voltage divider to ensure the EN pin voltage remains within the specified range.
  • Yes, the TDSO3160-L is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions, PCB layout, and thermal management guidelines to ensure the device meets the required reliability and performance standards.
  • To troubleshoot issues with the TDSO3160-L, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting and debugging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDSO3160-L Overview

Use the download button to access the TDSO3160-L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDSO3, or try a keyword search, such as LED Displays
