Description:Display Modules - LED Character and Numeric Orange-Red 7-Segment 1 Character Common Anode 2V 20mA 0.689" H x 0.482" W x 0.252" D (17.50mm x 12.25mm x 6.40mm) 10-DIP (0.600", 15.24mm)
The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 10 mm x 10 mm, and using multiple vias to connect the thermal pad to a solid copper plane on the bottom layer of the PCB. This helps to dissipate heat efficiently and reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal design and heat sinking, and consider using a heat sink or thermal interface material to reduce thermal resistance.
The recommended soldering profile for the TDSO5150-LM involves a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. The device is compatible with both lead-free and lead-based soldering processes.
The TDSO5150-LM has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding personnel and equipment, and minimizing handling of the device during assembly.
The recommended storage and handling procedure for the TDSO5150-LM involves storing the device in its original packaging or in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the leads, and handle the device by the body rather than the leads to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDSO5150-LM Overview

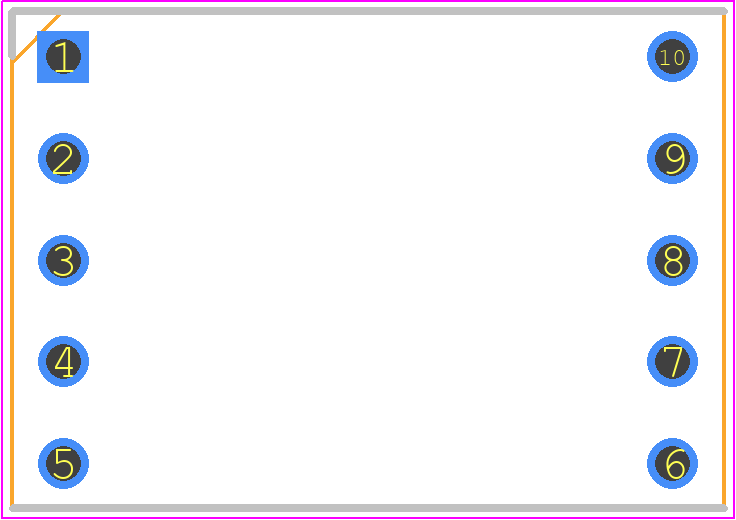

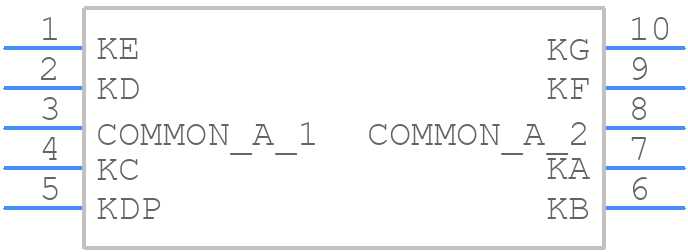

Use the download button to access the TDSO5150-LM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDSO5,
or try a keyword search, such as LED Displays
