TDSO5160-LM - Vishay

Description: Display Modules - LED Character and Numeric Orange-Red 7-Segment 1 Character Common Cathode 2V 20mA 0.689" H x 0.482" W x 0.252" D (17.50mm x 12.25mm x 6.40mm) 10-DIP (0.600", 15.24mm)

Download TDSO5160-LM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TDSO5160-LM - Vishay - PCB symbol
click to zoom

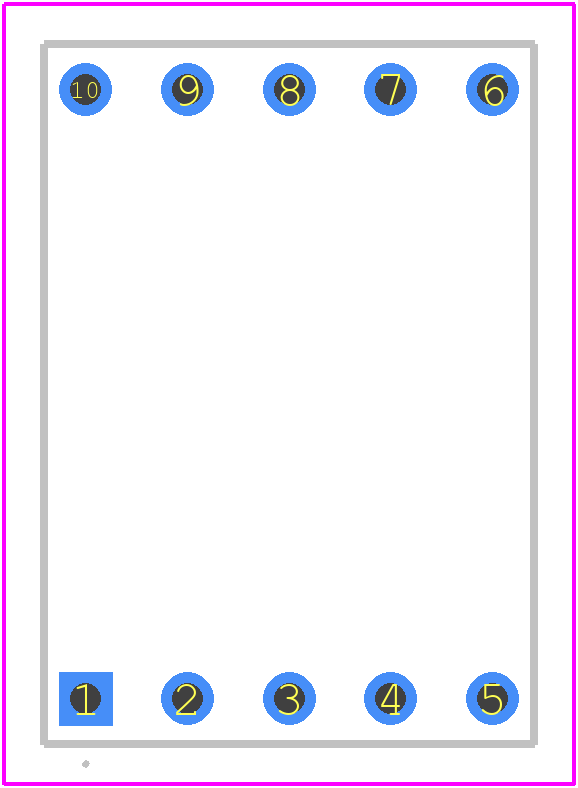

PCB Footprints
TDSO5160-LM - Vishay PCB footprint - Other - Other - 10-DIP_2025-1
click to zoom
3D Models
TDSO5160-LM - Vishay - 3D model - Other - 10-DIP_2025-1
click to zoom

TDSO5160-LM Details

  • Manufacturer Part Number:

    TDSO5160-LM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Color:

    ORANGE RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    13 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    3 V

  • JESD-609 Code:

    e4

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    630 nm

  • Terminal Finish:

    SILVER

TDSO5160-LM Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 20mm x 20mm, and using multiple vias to connect the thermal pad to the ground plane. This helps to dissipate heat efficiently and reduce thermal resistance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal design and heat sinking to keep the junction temperature below the maximum rated value.
  • The recommended soldering profile for the TDSO5160-LM involves a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. It is also recommended to use a soldering iron with a temperature range of 350-400°C to prevent overheating the device.
  • The TDSO5160-LM is not hermetically sealed, so it is not recommended for use in high-humidity environments. However, if it is necessary to use the device in such an environment, it is recommended to apply a conformal coating to protect the device from moisture.
  • The recommended storage condition for the TDSO5160-LM is in a dry, cool place with a temperature range of 5-30°C and humidity below 60%. It is also recommended to store the device in its original packaging or in a sealed bag to prevent moisture absorption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDSO5160-LM Overview

Use the download button to access the TDSO5160-LM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDSO5, or try a keyword search, such as LED Displays
