Part Image

TDSR1360-IK - Vishay

Description: Displays Module 1DIGIT 8LED Red CC 10-Pin DIP Module Tube

Download TDSR1360-IK Model

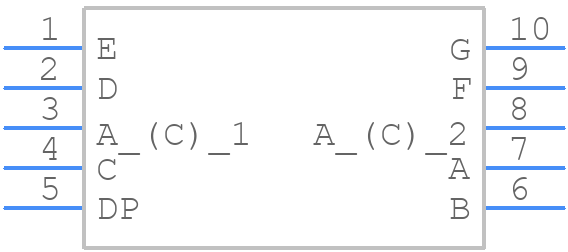

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

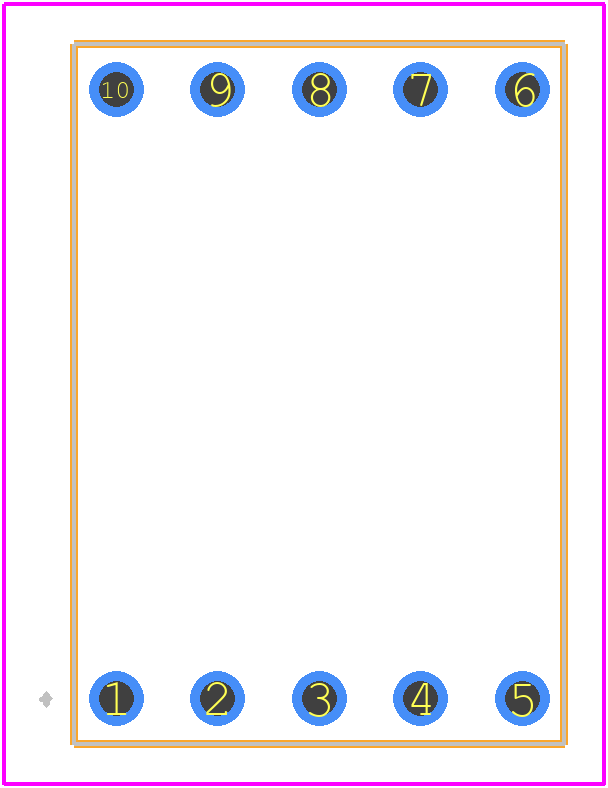

TDSR1360-IK - Vishay PCB footprint - Other - Other - TDSR1360-IK-2
click to zoom
3D Models
TDSR1360-IK - Vishay  - 3D model - Other - TDSR1360-IK-2
click to zoom

TDSR1360-IK Details

  • Manufacturer Part Number:

    TDSR1360-IK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Color:

    HIGH INTENSITY RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    13 mm

  • Forward Current-Max:

    0.01 A

  • Forward Voltage-Max:

    2.4 V

  • JESD-609 Code:

    e4

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    650 nm

  • Terminal Finish:

    SILVER

TDSR1360-IK Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves using a large copper area for heat dissipation, keeping the component away from heat sources, and using thermal vias to dissipate heat to the bottom layer of the PCB.
  • To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or pressure, which can damage the component.
  • The maximum operating temperature range for the TDSR1360-IK is -40°C to 150°C, with a storage temperature range of -40°C to 180°C.
  • Handle the TDSR1360-IK by the body, avoiding touching the leads or the glass passivation layer. Use anti-static wrist straps or mats to prevent electrostatic discharge (ESD) damage.
  • The recommended cleaning process involves using a mild detergent and deionized water, followed by a drying process to prevent water spots. Avoid using harsh chemicals, abrasive materials, or ultrasonic cleaning methods.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDSR1360-IK Overview

Use the download button to access the TDSR1360-IK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDSR1, or try a keyword search, such as LED Displays
