- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TEA1507P/N1,112
- Part Number TEA1507P/N1,112
- Manufacturer NXP
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - TDA1543 Dual 16-bit DAC (economy version) (I2S input format)
- Released Date Jun 5, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TEA1507P/N1,112 Details
-
Manufacturer Part Number:
TEA1507P/N1,112
-
Brand Name:
NXP Semiconductor
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
0.300 INCH, PLASTIC, DIP-8
-
Pin Count:
8
-
Manufacturer Package Code:
SOT97-1
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Manufacturer:
NXP Semiconductors
TEA1507P/N1,112 Frequently Asked Questions (FAQs)
-
A good PCB layout for the TEA1507P/N1,112 involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure the TEA1507P/N1,112 operates within its SOA, implement a soft-start circuit to limit the inrush current during startup. During shutdown, use a controlled shutdown sequence to prevent voltage spikes and ensure a gradual decrease in output voltage.
-
For thermal management, ensure good airflow around the device, use a heat sink with a thermal resistance of <1°C/W, and apply a thermal interface material (TIM) with a thermal conductivity of >5 W/mK. Also, consider using a thermistor or thermocouple to monitor the device temperature.
-
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to analyze the output voltage and current waveforms. Consult the datasheet and application notes for guidance on specific troubleshooting steps.
-
For the TEA1507P/N1,112, use input capacitors with a capacitance of 10-22 μF, a voltage rating of 25-50 V, and an ESR of <1 Ω. For output capacitors, use a capacitance of 10-47 μF, a voltage rating of 10-25 V, and an ESR of <1 Ω. Choose capacitors with a low ESR and a high ripple current rating.
Trust Checks
Expert Contribution
System Verified
Community Approved
TEA1507P/N1,112 Overview

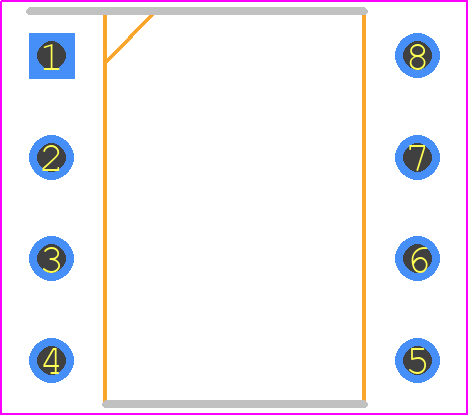

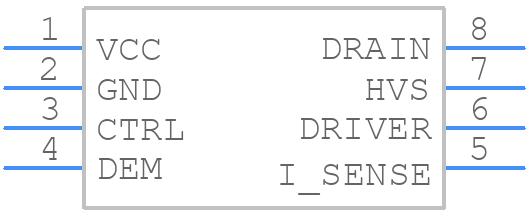

Use the download button to access the TEA1507P/N1,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TEA15,
or try a keyword search, such as Switching Regulator or Controllers
