TEA18363T/2J - NXP

Description: Switching Controllers GreenChip SMPS control IC

Download TEA18363T/2J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

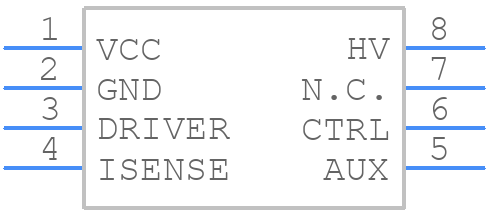

TEA18363T/2J - NXP - PCB symbol
click to zoom
PCB Footprints
TEA18363T/2J - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TEA18363T/2J
click to zoom
3D Models
TEA18363T/2J - NXP - 3D model - Small Outline Packages - TEA18363T/2J
click to zoom

TEA18363T/2J Details

  • Manufacturer Part Number:

    TEA18363T/2J

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT96-1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    30 V

  • Input Voltage-Nom:

    20 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    140 kHz

  • Technology:

    SOI

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TEA18363T/2J Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11542, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of the transformer depends on the input voltage, output voltage, and power rating of the application. NXP provides a transformer selection guide in the application note AN11542, which includes a list of recommended transformers and their characteristics.
  • The TEA18363T/2J is rated for operation up to 150°C ambient temperature, but the reliability and lifespan of the device may be affected at high temperatures. It is recommended to derate the device's power handling and operating frequency at high temperatures to ensure reliable operation.
  • To ensure EMC, it is recommended to follow the guidelines in the application note AN11542, which includes recommendations for PCB layout, component selection, and shielding. Additionally, the device should be tested for EMC compliance according to relevant standards such as IEC 61000-4-2 and IEC 61000-4-4.
  • The recommended input voltage range for the TEA18363T/2J is 85-305 Vac, but the device can operate with input voltages as low as 70 Vac and as high as 400 Vac with reduced performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TEA18363T/2J Overview

Use the download button to access the TEA18363T/2J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TEA18, or try a keyword search, such as Switching Regulator or Controllers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
