TEA19032BAAT/1J - NXP

Description: AC/DC Converters SmartCharg Proto contr USBPD3+PPS

Download TEA19032BAAT/1J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

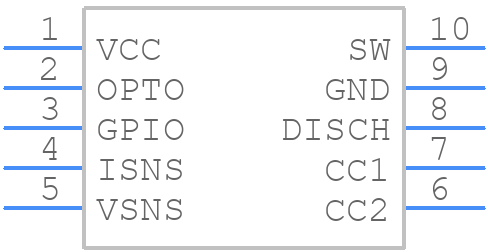

Symbol
TEA19032BAAT/1J - NXP - PCB symbol
click to zoom
PCB Footprints
TEA19032BAAT/1J - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT1437-1
click to zoom
3D Models
TEA19032BAAT/1J - NXP - 3D model - Small Outline Packages - SOT1437-1
click to zoom

TEA19032BAAT/1J Details

  • Manufacturer Part Number:

    TEA19032BAAT/1J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PDSO-G10

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TEA19032BAAT/1J Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11535, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The TEA19032BAAT/1J has a built-in voltage regulator that can be configured for different input voltage ranges using external resistors. The configuration is described in the datasheet, section 8.3.1, and requires careful selection of the resistors to ensure proper operation.
  • The maximum current that the TEA19032BAAT/1J can deliver to the load depends on the input voltage and the output voltage configuration. The datasheet provides a table (Table 10) that lists the maximum output current for different input and output voltage combinations.
  • The TEA19032BAAT/1J has a built-in overcurrent protection feature that can be enabled by connecting an external resistor to the OCP pin. The resistor value determines the overcurrent threshold, and the datasheet provides a formula to calculate the resistor value based on the desired threshold.
  • The thermal derating of the TEA19032BAAT/1J is described in the datasheet, section 10.2. The device has a maximum junction temperature of 150°C, and the output current must be derated above 85°C to prevent overheating. The datasheet provides a graph (Figure 14) that shows the thermal derating curve.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TEA19032BAAT/1J Overview

Use the download button to access the TEA19032BAAT/1J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TEA19, or try a keyword search, such as Power Management Circuits
