TEA19161T/2Y - NXP

Description: Switching Controllers Resonant LLC controller

Download TEA19161T/2Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

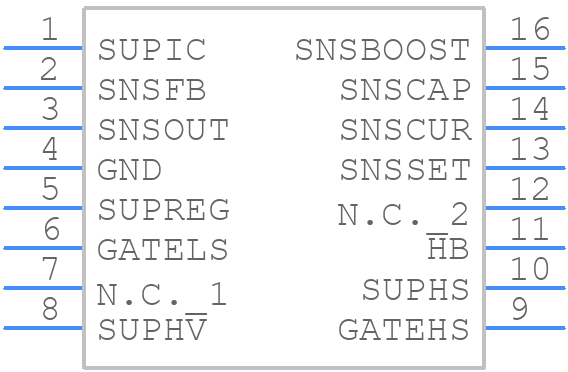

TEA19161T/2Y - NXP - PCB symbol
click to zoom
PCB Footprints
TEA19161T/2Y - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT109-1
click to zoom
3D Models
TEA19161T/2Y - NXP - 3D model - Small Outline Packages - SOT109-1
click to zoom

TEA19161T/2Y Details

  • Manufacturer Part Number:

    TEA19161T/2Y

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT109-1

  • Country Of Origin:

    Mainland China, Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Time@Peak Reflow Temperature-Max (s):

    30

TEA19161T/2Y Frequently Asked Questions (FAQs)

  • A good PCB layout for the TEA19161T/2Y involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The TEA19161T/2Y requires a single 3.3V power supply. The power supply should be stable and well-regulated. The device has a built-in power-on reset circuit, so no external power sequencing is required. However, it's recommended to power up the device slowly (within 10ms) to prevent latch-up.
  • The TEA19161T/2Y has a thermal pad on the bottom of the package, which should be connected to a solid ground plane on the PCB to dissipate heat. A thermal via array can be used to improve heat dissipation. The device can operate up to 125°C, but thermal management is still crucial to ensure reliability.
  • To troubleshoot issues with the TEA19161T/2Y, first check the power supply and ensure it's stable and within the recommended range. Verify that the input and output tracks are properly connected and not damaged. Use an oscilloscope to check the input and output waveforms. If the issue persists, consult the NXP Semiconductors support team or a qualified engineer for further assistance.
  • Yes, the TEA19161T/2Y has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded. Avoid touching the device pins or PCB traces to prevent ESD damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TEA19161T/2Y Overview

Use the download button to access the TEA19161T/2Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TEA19, or try a keyword search, such as Other Signal Circuits
