Part Image

TEA19361T/1J - NXP

Description: NXP - TEA19361T/1J - SMPS PRIMARY SIDE CONTROL IC, SOIC-10

Download TEA19361T/1J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

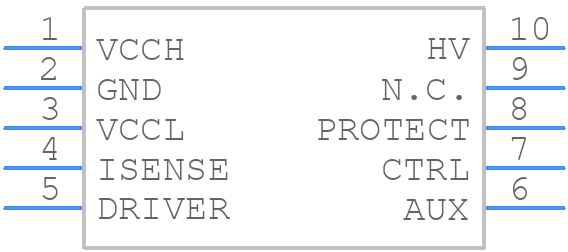

Symbol
TEA19361T/1J - NXP - PCB symbol
click to zoom
PCB Footprints
TEA19361T/1J - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT1437-1
click to zoom
3D Models
TEA19361T/1J - NXP - 3D model - Small Outline Packages - SOT1437-1
click to zoom

TEA19361T/1J Details

  • Manufacturer Part Number:

    TEA19361T/1J

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-10

  • Manufacturer Package Code:

    SOT1437-1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    NXP Semiconductors

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Nom:

    20 V

  • JESD-30 Code:

    R-PDSO-G10

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Voltage-Max:

    20 V

  • Output Voltage-Min:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP10,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    136 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TEA19361T/1J Frequently Asked Questions (FAQs)

  • A good PCB layout for the TEA19361T/1J involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The TEA19361T/1J requires a single 3.3V power supply. It's recommended to power the device with a clean, low-noise power supply. The power sequencing requirement is to power up the device after the input voltage has reached 2.7V and to power down the device before the input voltage drops below 2.7V.
  • The maximum allowed input voltage for the TEA19361T/1J is 5.5V. Exceeding this voltage can cause permanent damage to the device. It's recommended to use a voltage limiter or a voltage regulator to ensure the input voltage stays within the specified range.
  • To troubleshoot issues with the TEA19361T/1J, first check the input voltage and ensure it's within the specified range. Verify that the device is properly powered and that the input and output capacitors are correctly connected. Use an oscilloscope to check the output voltage and frequency. If the issue persists, check the PCB layout and ensure it meets the recommended layout guidelines.
  • Yes, the TEA19361T/1J can be used in automotive applications. It meets the AEC-Q100 qualification standard for automotive applications. The device operates over a temperature range of -40°C to 125°C and meets the relevant automotive specifications for voltage, current, and EMI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TEA19361T/1J Overview

Use the download button to access the TEA19361T/1J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TEA19, or try a keyword search, such as Switching Regulator or Controllers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
