TEA1999TK/2J - NXP

Description: NXP - TEA1999TK/2J - SYNCHRONOUS RECTIFIER CTRL, HVSON-8

Download TEA1999TK/2J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

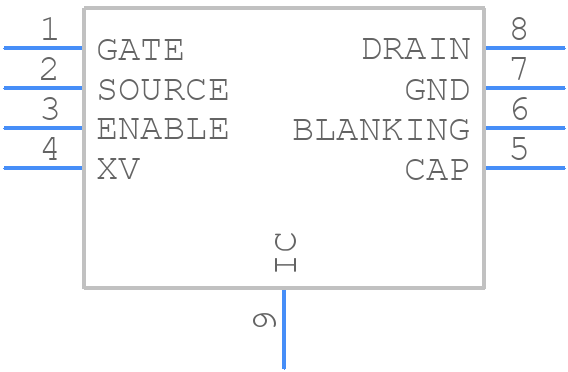

TEA1999TK/2J - NXP - PCB symbol
click to zoom
PCB Footprints
TEA1999TK/2J - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - HVSON-8
click to zoom
3D Models
TEA1999TK/2J - NXP - 3D model - Small Outline No-lead - HVSON-8
click to zoom

TEA1999TK/2J Details

  • Manufacturer Part Number:

    TEA1999TK/2J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSON-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Input Voltage-Max:

    21 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    26 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    1.4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Technology:

    SOI

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TEA1999TK/2J Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11544, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor values depend on the input voltage, output voltage, and output current requirements. NXP provides a capacitor selection guide in the application note AN11544, which includes a formula to calculate the minimum input capacitance value. Additionally, the datasheet provides a recommended input capacitor value range.
  • The TEA1999TK/2J has an operating ambient temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. NXP recommends derating the device's power dissipation at higher temperatures to ensure reliable operation.
  • NXP provides EMC guidelines in the application note AN11544, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic radiation and susceptibility. Additionally, the TEA1999TK/2J is designed to meet CISPR 25 Class 5 and FCC Part 15 Class B EMC requirements.
  • NXP recommends using a thermal pad or heat sink to dissipate heat from the device. The application note AN11544 provides guidelines for thermal pad design and heat sink selection. Additionally, the datasheet provides thermal resistance values to help estimate the device's junction temperature.
