TEA2017AAT/2Y footprint, schematic symbol and 3D model by NXP

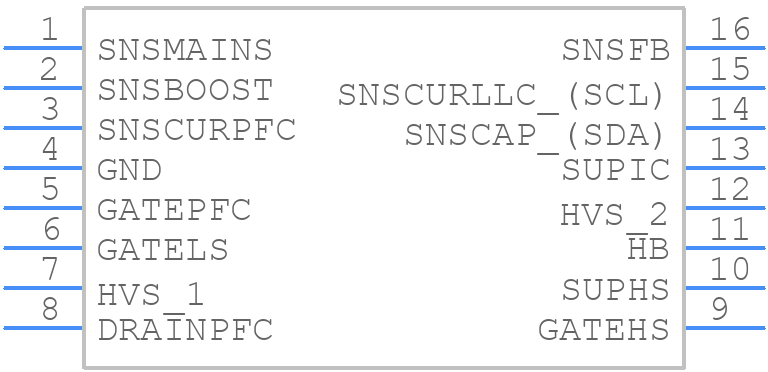

Symbol

click to zoom

PCB Footprints

TEA2017AAT/2Y - NXP PCB footprint - Other - Other - SOT109-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TEA2017AAT/2Y
Part Number TEA2017AAT/2Y
Manufacturer NXP
Pin Count 16
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOT109-1
Released Date May 24, 2023
Last Modified Date Dec 15, 2025 10:51 AM UTC
Pinout / Pin List Click Here (Member Only)

TEA2017AAT/2Y Details

Manufacturer Part Number:
TEA2017AAT/2Y
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
NXP Semiconductors
YTEOL:
6
Analog IC - Other Type:
SWITCHING CONTROLLER
Moisture Sensitivity Level:
3
Peak Reflow Temperature (Cel):
260
Time@Peak Reflow Temperature-Max (s):
30

Trust Checks

Community Provided

System Verified

Community Approved

TEA2017AAT/2Y Overview

Use the download button to access the TEA2017AAT/2Y schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TEA20, or try a keyword search, such as Switching Regulator or Controllers
