TEA2096T/1J footprint, schematic symbol and 3D model by NXP

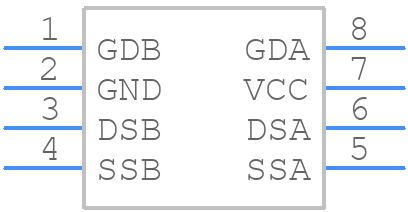

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TEA2096T/1J
Part Number TEA2096T/1J
Manufacturer NXP
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOT96-1
Released Date Apr 30, 2025
Last Modified Date Apr 30, 2025 3:54 AM UTC
Pinout / Pin List Click Here (Member Only)

TEA2096T/1J Details

Manufacturer Part Number:
TEA2096T/1J
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
NXP Semiconductors
Analog IC - Other Type:
SWITCHING CONTROLLER
Moisture Sensitivity Level:
1
Peak Reflow Temperature (Cel):
260
Time@Peak Reflow Temperature-Max (s):
30

Trust Checks

System Verified

TEA2096T/1J Overview

Use the download button to access the TEA2096T/1J schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TEA20, or try a keyword search, such as Switching Regulator or Controllers
