TEA2208T/1J - NXP

Description: Resonant power supply with PFC / TAPE + REEL

Download TEA2208T/1J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

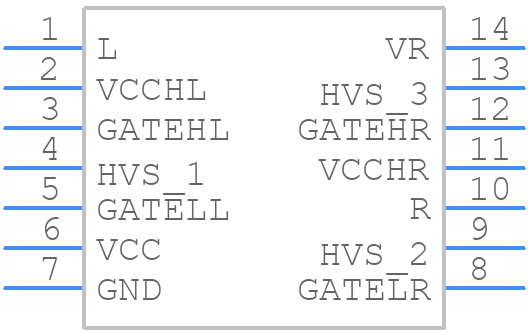

TEA2208T/1J - NXP - PCB symbol
click to zoom
PCB Footprints
TEA2208T/1J - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SO14: plastic small outline package; 14 leads; body width 3.9 mm
click to zoom
3D Models
TEA2208T/1J - NXP - 3D model - Small Outline Packages - SO14: plastic small outline package; 14 leads; body width 3.9 mm
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for TEA2208T/1J
  • Part Number TEA2208T/1J
  • Manufacturer NXP
  • Pin Count 14
  • Part Category Integrated Circuit
  • Package Category Small Outline Packages
  • Footprint Name Small Outline Packages - SO14: plastic small outline package; 14 leads; body width 3.9 mm
  • Released Date May 15, 2020
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

TEA2208T/1J Details

  • Manufacturer Part Number:

    TEA2208T/1J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TEA2208T/1J Overview

Use the download button to access the TEA2208T/1J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TEA22, or try a keyword search, such as Other Signal Circuits
