TEA3718SP - STMicroelectronics

Description: Stepper motor driver, 10V to 50 V, -55 to +150 oC

Download TEA3718SP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

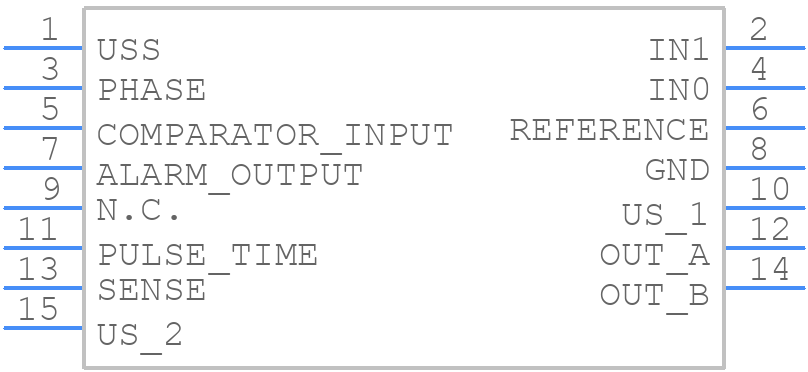

Symbol
TEA3718SP - STMicroelectronics - PCB symbol
click to zoom

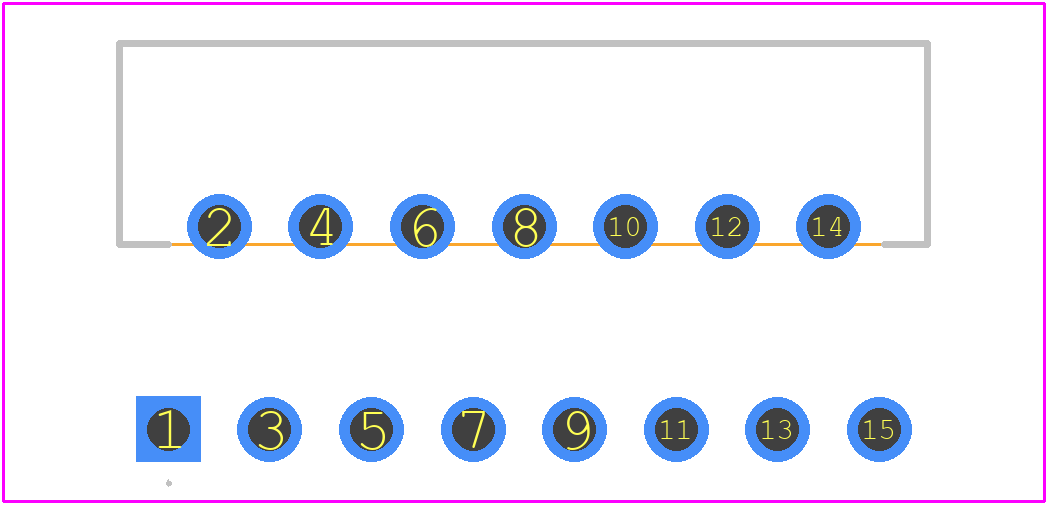

PCB Footprints
TEA3718SP - STMicroelectronics PCB footprint - Other - Other - Multiwatt15_2026
click to zoom
3D Models
TEA3718SP - STMicroelectronics - 3D model - Other - Multiwatt15_2026
click to zoom

TEA3718SP Details

  • Manufacturer Part Number:

    TEA3718SP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT-15

  • Pin Count:

    15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRES A 10 TO 45 V SUPPLY

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PZFM-T15

  • JESD-609 Code:

    e0

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP15,.1,.14TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    25 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

TEA3718SP Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4392, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of the transformer depends on the specific application requirements, such as output power, voltage, and current. STMicroelectronics provides a transformer selection guide in the application note AN4392, which includes a list of recommended transformers and their characteristics.
  • The TEA3718SP is rated for operation in an ambient temperature range of -40°C to +125°C, but the maximum ambient temperature range may be limited by the specific application and the thermal management system used.
  • To ensure EMC, follow the guidelines in the application note AN4392, which includes recommendations for PCB layout, component selection, and shielding. Additionally, perform EMC testing and certification according to relevant standards, such as IEC 61000-4-2 and IEC 61000-4-4.
  • The typical efficiency of the TEA3718SP is around 85-90% at full load, depending on the specific application and operating conditions. However, the actual efficiency may vary depending on the design and implementation of the power supply.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TEA3718SP Overview

Use the download button to access the TEA3718SP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TEA37, or try a keyword search, such as Motion Control Electronics

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
