TEA5711 - NXP

TEA5711 Details

• Manufacturer Part Number:

  TEA5711

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

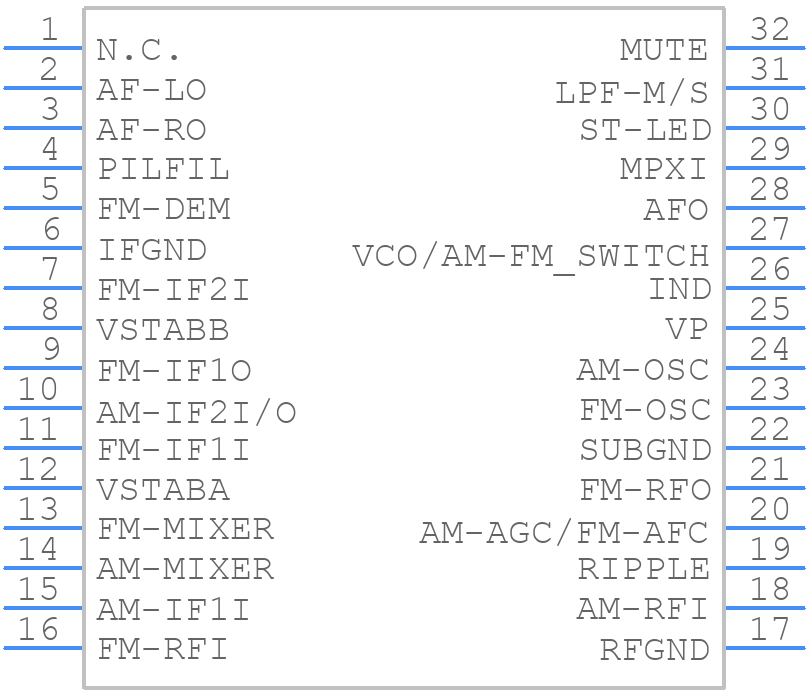

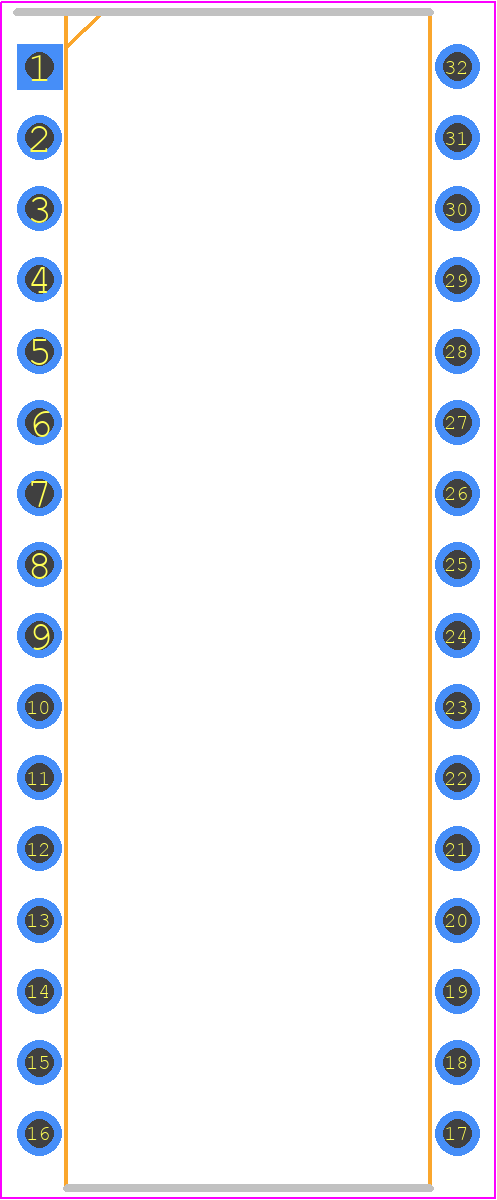

• Package Description:

  0.400 INCH, PLASTIC, SOT-232, SDIP-32

• Pin Count:

  32

• HTS Code:

  8542.39.00.60

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Consumer IC Type:

  AUDIO SINGLE CHIP RECEIVER

• Demodulation Type:

  AM/FM

• Harmonic Distortion:

  0.8%

• JESD-30 Code:

  R-PDIP-T32

• JESD-609 Code:

  e3

• Length:

  28.95 mm

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  60 °C

• Operating Temperature-Min:

  -15 °C

• Output Voltage-Nom (AM):

  45 mV

• Output Voltage-Nom (FM):

  61 mV

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SDIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.7 mm

• Signal to Noise Ratio-Nom (FM):

  61 dB

• Supply Current-Max:

  20.2 mA

• Supply Voltage-Max (Vsup):

  12 V

• Supply Voltage-Min (Vsup):

  1.8 V

• Surface Mount:

  NO

• Technology:

  BIMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.778 mm

• Terminal Position:

  DUAL

• Width:

  10.16 mm
